Termostato Tuya Termostato Wifi Fan Coil Controlador de Temperatura de la Habitación Smart Life App Control

Identificación del producto : HTW-WF11-FC-2W/4W

Etiquetas del producto : termostato ambiente termostato fan coil termostato inteligente

Atributos del producto :

El termostato fan coil inteligente de la serie HTW-WF11-FC se utiliza ampliamente para mantener una temperatura ambiente ideal.

Descripción del producto

Termostato Tuya Termostato Wifi Fan Coil Controlador de Temperatura de la Habitación Smart Life App Control

>> General

HTW-WF11-FC-2W/4W

El termostato de ambiente FCU de la serie HTW-WF11-FC se utiliza ampliamente en el sistema de aire acondicionado central para controlar los ventiladores y las válvulas de zona motorizadas.

>> Ordering Guide

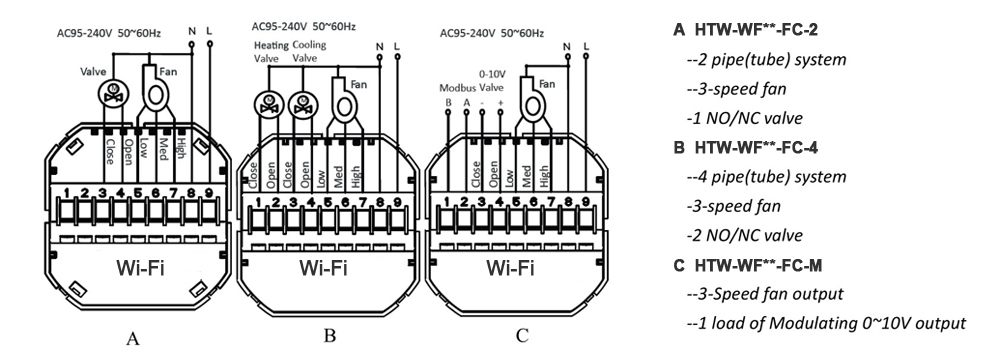

HTW-WF11-FC-**	-2	2 pipe(tube) system	-W	Wi-Fi
Smart Fan Coil Thermostat	-4	4 pipe(tube) system	-B	BACnet
	-M	Modulating output	-EC	EC Fan
	-N	Modbus RTU communication	-E	External Temperature Sensor
	-K	Key Card occupancy input	-24v	Power Supply with 24Vac
e.g. HTW-WF11-FC-MKB: refers to application: 1 modulating output, 3 fan speed, with Key-card and BACnet

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A (3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A (1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5~99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm² or 1 x 2.5 mm²
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
