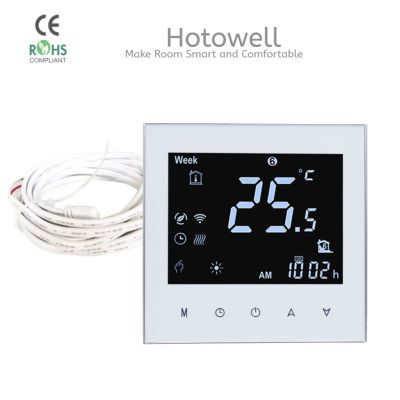

Electrodomésticos Termostato inteligente Termostato programable Tuya Sistemas HVAC

Identificación del producto : HTW-WF02-FC

Etiquetas del producto : termostato ambiente termostato fan coil termostato inteligente

Atributos del producto :

El termostato de fan coil serie HTW-WF02-FC se utiliza ampliamente para mantener una temperatura ambiente ideal.

Descripción del producto

Electrodomésticos Termostato inteligente Termostato programable Tuya Sistemas HVAC

>> General

El termostato fan coil de la serie HTW-WF02-FC se utiliza ampliamente en entornos como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc. para mantener una temperatura ambiente ideal.

>> Ordering Guide

HTW-WF02- FC-**	-2	2 pipe(tube) system	-W	Wi-Fi
Smart Fan Coil Thermostat	-4	4 pipe(tube) system	-T	Clock
	-M	Modulating output	-P	Programmable
	-N	Modbus RTU communication	-E	External Temperature Sensor
	-K	Key Card occupancy input	-24v	Power Supply with 24Vac
e.g. HTW-WF02-FC-2N refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with Modbus

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A (3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A (1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm² or 1 x 2.5 mm²
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
