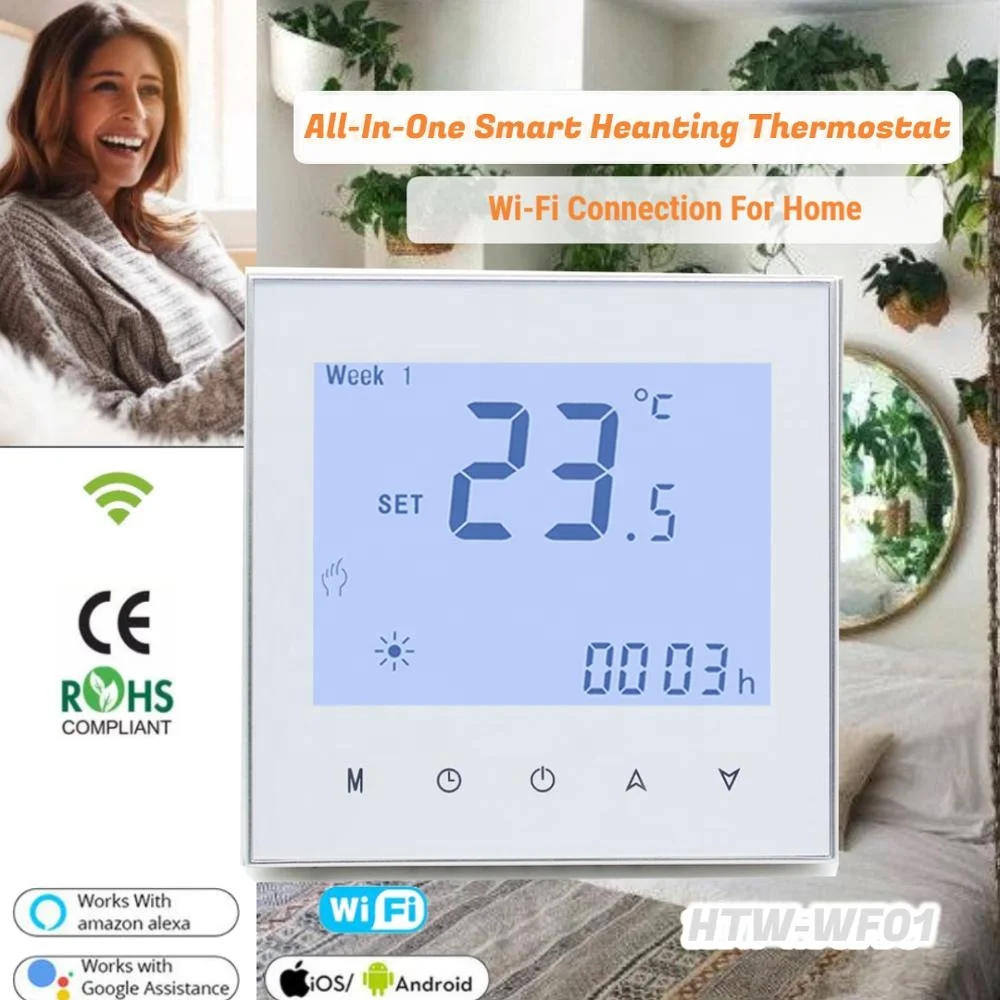

Termostato inteligente para Hotel, caldera de Gas de 220V, termostato de calefacción, termostato Modbus HTW-WF01

Termostato inteligente para Hotel, caldera de Gas de 220V, termostato de calefacción, termostato Modbus HTW-WF01

Identificación del producto : HTW-WF01

Etiquetas del producto : termostato inteligente termostato modbus termostato programable

Atributos del producto :

El termostato Tuya Wifi de la serie HTW-WF01 se usa ampliamente en estos entornos, como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc., para lograr un propósito de temperatura ambiente ideal. Se puede utilizar en sistemas de calefacción por suelo radiante eléctrico, calefacción por agua o caldera de agua/gas.

Descripción del producto

Product Description


 Termostato inteligente para Hotel, caldera de Gas de 220V, termostato de calefacción, termostato Modbus HTW-WF01

>> General
HTW-WF01 series Tuya Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.


>> Ordering Guide

HTW-WF01- **
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF01-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

Company Profile

Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. covering industrial, commercial and residential temperature controls.

Our Service

Customer Service
1. OEM & ODM service offered2. sample's fee can be refunded after order reached 2000pcs

Warranty
1. Test the products one by one before delivery
2. We guarantee 18months from the date you get the goods,excludes damaged by human
3. If you can find out the problem and fix it easily, we will offer several components for service
