OEM Nest Forma de pantalla táctil inteligente Fan Coil termostato de control de temperatura

OEM Nest Forma de pantalla táctil inteligente Fan Coil termostato de control de temperatura

Identificación del producto : HTW-WF06-FC

Etiquetas del producto : Termostato Wifi Termóstato termostato ambiente termostato del hotel termostato fan coil termostato inteligente termostato modbus termostato programable

Atributos del producto :

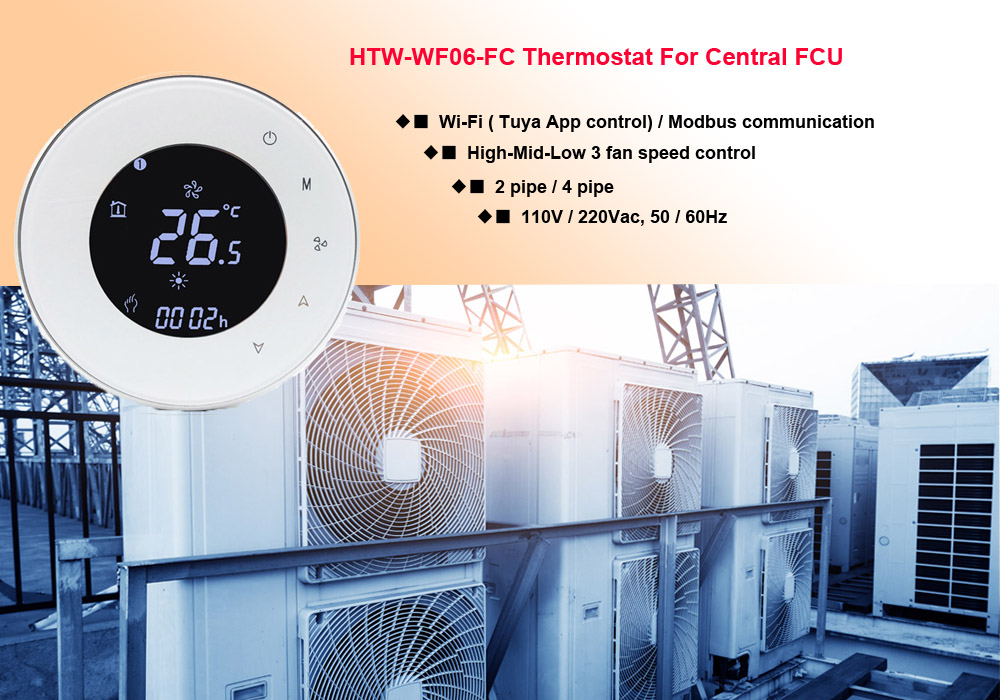

HTW-WF06-FC series smart fan coil thermostat is widely used to maintain an ideal room temperature.

Descripción del producto

OEM Nest Forma de pantalla táctil inteligente Fan Coil termostato de control de temperatural

>> General

HTW-WF06-FC-2W/4W
HTW-WF06-FC series smart fan coil thermostat is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices, etc. to maintain an ideal room temperature.

>> Ordering Guide

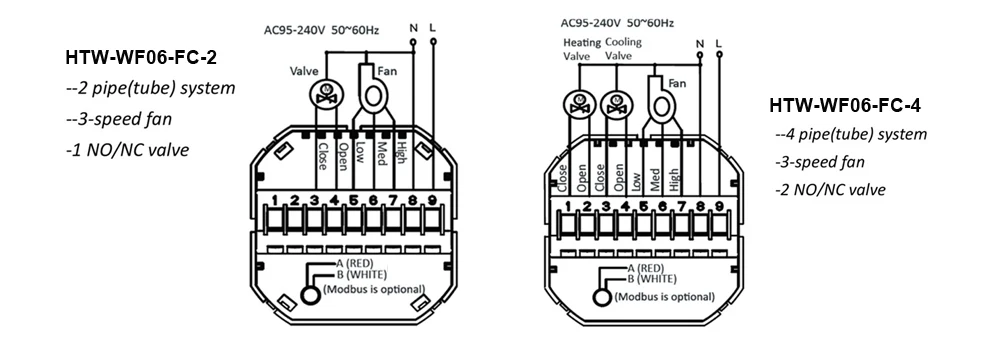

HTW-WF06- FC-**	-2	2 pipe(tube) system	-W	Wi-Fi
Smart Fan Coil Thermostat	-4	4 pipe(tube) system	-B	BACnet
	-M	Modulating output	-P	Programmable
	-N	Modbus RTU communication	-E	External Temperature Sensor
	-K	Key Card occupancy input	-24v	Power Supply with 24Vac
e.g. HTW-WF06-FC-4W24: refers to application: 3 fan speed, 4 pipe system, Wi-Fi, 24Vac

>> Specification

Power Supply	24Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A (3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A (1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5~99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
