Wifi Auto Control 16A Pantalla táctil Calefacción Termostatos con cable para calefacción por suelo radiante eléctrico
Wifi Auto Control 16A Pantalla táctil Calefacción Termostatos con cable para calefacción por suelo radiante eléctrico Wifi Auto Control 16A Pantalla táctil Calefacción Termostatos con cable para calefacción por suelo radiante eléctrico Wifi Auto Control 16A Pantalla táctil Calefacción Termostatos con cable para calefacción por suelo radiante eléctrico Wifi Auto Control 16A Pantalla táctil Calefacción Termostatos con cable para calefacción por suelo radiante eléctrico Wifi Auto Control 16A Pantalla táctil Calefacción Termostatos con cable para calefacción por suelo radiante eléctrico

Wifi Auto Control 16A Pantalla táctil Calefacción Termostatos con cable para calefacción por suelo radiante eléctrico

Identificación del producto : HTW-HT03
Etiquetas del producto : Termostato Wifitermostato digital
Atributos del producto :

El termostato Wifi de la serie HTW-HT03 se usa ampliamente en estos entornos, como casas, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc., para lograr una temperatura ambiente ideal. Se puede utilizar en sistemas de calefacción por suelo radiante eléctrico, calefacción por agua o caldera de agua/gas.

Descripción del producto
Product Description

Wifi Auto Control 16A Pantalla táctil Calefacción Termostatos con cable para calefacción por suelo radiante eléctrico



>> General

HTW-HT03 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.



>> Feature

* 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew, German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese,     Vietnamese, Arabic, Korean)
* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box

* Easily Work with Amazon alexa, Google Assitant, IFTTT.

* Group Control in 1 App
* Fashion Sense of Science and Technology

>> Ordering Guide

HTW-HT03- **
Smart Wifi Thermostat

Code
Application

-3A
Water Heating, 3A, NC+NO+Com output terminals

-16A
Electric Underfloor Heating, 16A, L+N line voltage output terminals

-NV
Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-HT03-3A refers to application:Water Heating, 3A, NC+NO+Com output terminals

>> Specifications

Power Supply
95~240Vac, 50/60Hz
Sensor
NTC3950, 10K

Current Load
3A(-3A, -NV application)
Temperature Accuracy
±0.5°C or ±1℉
16A(-16A application)
Set-Point Range
5~35°C
Storage Temp.
-5 ~ 45 °C
Display Temp. Range
5 ~ 99°C
Power Consumption
< 1.5W
Timing Error
< 1%
Housing Material
PC +ABS ( Fireproof)
Installation Box
EU or Standard Electric Box
Wires on Terminals
Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class
IP20
Operating Buttons
Capacitive Touch Buttons

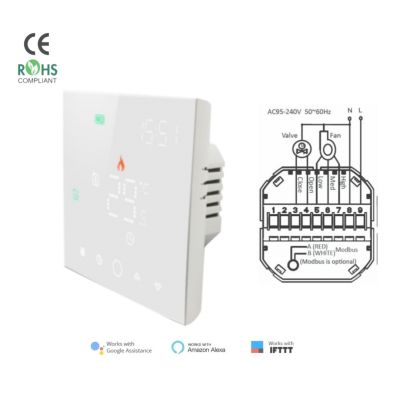

>>  Dimensions and Display

Detailed Images
Four color Type for your reference
Applications
