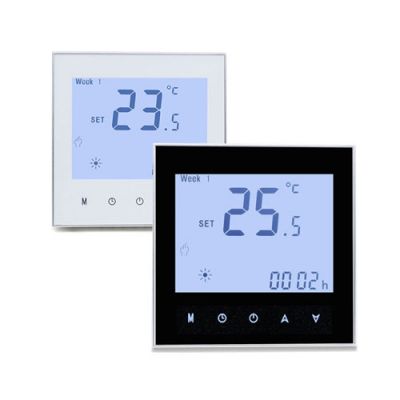

Termostato inteligente del sistema de calefacción por suelo radiante a temperatura ambiente de la vivienda con control WiFi
El termostato inteligente de la serie HTW-WF02 se usa ampliamente en entornos como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc., para lograr una temperatura ambiente ideal.
Termostato inteligente del sistema de calefacción por suelo radiante a temperatura ambiente de la vivienda con control WiFi
El termostato inteligente de la serie HTW-WF02 se usa ampliamente en entornos como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc., para lograr una temperatura ambiente ideal.
>> Ordering Guide
|
HTW-WF02- **
|
|
|
|
|
Code
|
Application
|
|
-3A
|
Water Heating, 3A, NC+NO+Com output terminals
|
|
|
-16A
|
Electric Underfloor Heating, 16A, L+N line voltage output terminals
|
|
|
-NV
|
Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
|
|
|
e.g. HTW-WF01-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals
|
||
>> Specification
| Power Supply | 95~240Vac, 50/60Hz | Sensor | NTC3950, 10K |
| Current Load | 3A(-3A, -NV application) | Temperature Accuracy | ±0.5°C or ±1ºF |
| 16A(-16A application) | Set-Point Range | 5~35°C | |
| Storage Temp. | -5 ~ 45 °C | Display Temp. Range | 5 ~ 99°C |
| Power Consumption | < 1.5W | Timing Error | < 1% |
| Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | ||
Protection Class |
IP20 | Operating Buttons | Capacitive Touch Buttons |
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
