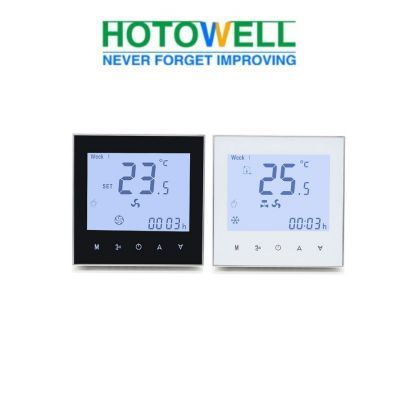

Pantalla de visualización negativa Solo calefacción/refrigeración Sistema de 2 tubos HVAC Termostato controlador de temperatura digital
El termostato de bobina de ventilador Wifi inteligente de la serie HTW-WF06-FC se usa ampliamente en estos entornos, como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc. para mantener un propósito de temperatura ambiente ideal.
Product Description
Pantalla de visualización negativa Solo calefacción/refrigeración Sistema de 2 tubos HVAC Termostato controlador de temperatura digital
>> General
El termostato de bobina de ventilador Wifi inteligente de la serie HTW-WF06-FC se usa ampliamente en estos entornos, como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc. para mantener un propósito de temperatura ambiente ideal.
>> Feature
* 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew, German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean)
* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Easily Work with Amazon Echo, Google Home, Tmall Genie, IFTTT
* One APP match N pieces Thermostats
>> Ordering Guide
| HTW-WF06- FC-** | -2 | 2 pipe(tube) system | -W | Wi-Fi Connection | |
Smart Wifi Fan Coil Thermostat |
-4 | 4 pipe(tube) system | -T | Clock | |
| -M | Modulating output | -P | Programmable | ||
| -N | Modbus RTU communication | -E | External Temperature Sensor | ||
| -K | Key Card occupancy input | -24v | Power Supply with 24Vac | ||
e.g. HTW-WF06-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable |
|||||
>> Specifications
| Power Supply | 95~240Vac, 50/60Hz | Sensor | NTC3950, 10K |
| Current Load | Fan Relay 5A(3A-inductive) | Temperature Accuracy | ±0.5°C or ±1ºF |
| Valve Relay 3A(1A-inductive) | Set-Point Range | 5~35°C | |
| Storage Temp. | -5 ~ 45 °C | Display Temp. Range | 5 ~ 99°C |
| Power Consumption | < 1.5W | Timing Error | < 1% |
| Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | ||
| Protection Class | IP20 | Operating Buttons | Capacitive Touch Buttons |
>> Typical Wiring
>> Dimensions and Display
>> FAQ
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
