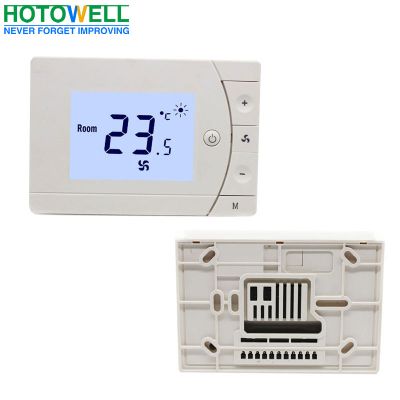

Controlador de temperatura del termostato de piezas de sistemas de calefacción por suelo aplicación Tuya WiFi Smart Life de 230V
El termostato Wifi de la serie HTW-ECB6 se usa ampliamente en entornos como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc., para lograr una temperatura ambiente ideal. Se puede utilizar en sistemas de calefacción por suelo radiante eléctrico, calentamiento de agua o calderas de agua/gas.
Controlador de temperatura del termostato de piezas de sistemas de calefacción por suelo aplicación Tuya WiFi Smart Life de 230V
>> General
El termostato Wifi de la serie HTW-ECB6 se usa ampliamente en entornos como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc., para lograr una temperatura ambiente ideal. Se puede utilizar en sistemas de calefacción por suelo radiante eléctrico, calentamiento de agua o calderas de agua/gas.
>> Ordering Guide
|
HTW-ECB6- ** |
Smart Wifi Thermostat |
|
|
Code |
Application |
|
|
-3A |
Water Heating, 3A, NC+NO+Com output terminals |
|
|
-16A |
Electric Underfloor Heating, 16A, L+N line voltage output terminals |
|
|
-NV |
Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals |
|
|
e.g. HTW-ECB6-3A refers to application:Water Heating, 3A, NC+NO+Com output terminals |
||
>> Specification
| Power Supply | 95~240Vac, 50/60Hz | Sensor | NTC3950, 10K |
| Current Load | 3A(-3A, -NV application) | Temperature Accuracy | ±0.5°C or ±1ºF |
| 16A(-16A application) | Set-Point Range | 5~35°C | |
| Storage Temp. | -5 ~ 45 °C | Display Temp. Range | 5 ~ 99°C |
| Power Consumption | < 1.5W | Timing Error | < 1% |
| Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | ||
| Protection Class | IP20 | Operating Buttons | Capacitive Touch Buttons |
>> Dimensions and Display
