Con tarjeta o sensor externo Termostato de Tuya Termostato de Fan Coil Termostato de ambiente

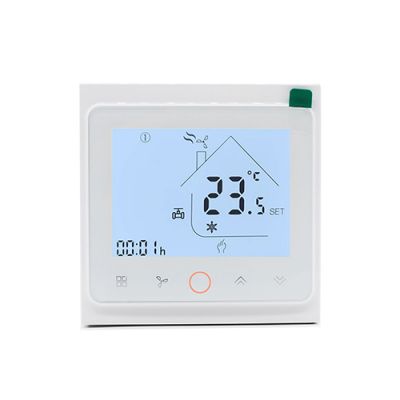

Identificación del producto : HTW-FT03

Etiquetas del producto : Termostato Wifi termostato ambiente termostato fan coil termostato inteligente

Atributos del producto :

HTW-FT03 serie termostato fan coil es ampliamente utilizado en muchos lugares para mantener una temperatura ambiente ideal propósito

Descripción del producto

Con tarjeta o sensor externo Termostato de Tuya Termostato de Fan Coil Termostato de ambiente

>> General

HTW-FT03-4EW/4WK

El termostato fan coil de la serie HTW-FT03 se utiliza ampliamente en entornos como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc. para mantener una temperatura ambiente ideal.

>> Ordering Guide

HTW-FT03- **	-2	2 pipe(tube) system	-W	WiFi Connection
	-4	4 pipe(tube) system	-T	Clock
	-M	Modulating output	-P	Weekly Programmable
	-N	Modbus RTU communication	-E	External Temp. Sensor
	-K	Key Card Occupancy Input	-24v	Power Supply with 24Vac
e.g. HTW-FT03-2K refers to application: 2 pipe system, key card function

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
