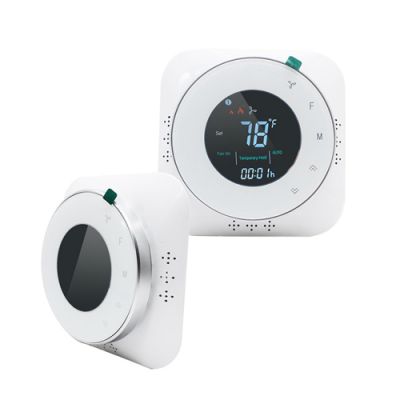

Hotowell Termostato Fan Coil Termostato Wifi Termostato Programable con Sensor Externo o Keycard

Identificación del producto : HTW-FT03

Etiquetas del producto : Termostato Wifi termostato ambiente termostato fan coil termostato inteligente

Atributos del producto :

HTW-FT03 serie termostato fan coil es ampliamente utilizado en muchos lugares para mantener una temperatura ambiente ideal propósito.

Descripción del producto

Hotowell Termostato Fan Coil Termostato Wifi Termostato Programable con Sensor Externo o Keycard

>> General

HTW-FT03-4EW/4WK

El termostato fan coil de la serie HTW-FT03 se utiliza ampliamente en entornos como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc. para mantener una temperatura ambiente ideal.

>> Ordering Guide

HTW-FT03- **	-2	2 pipe(tube) system	-W	WiFi Connection
	-4	4 pipe(tube) system	-T	Clock
	-M	Modulating output	-P	Weekly Programmable
	-N	Modbus RTU communication	-E	External Temp. Sensor
	-K	Key Card Occupancy Input	-24v	Power Supply with 24Vac
e.g. HTW-FT03-2K refers to application: 2 pipe system, key card function

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
