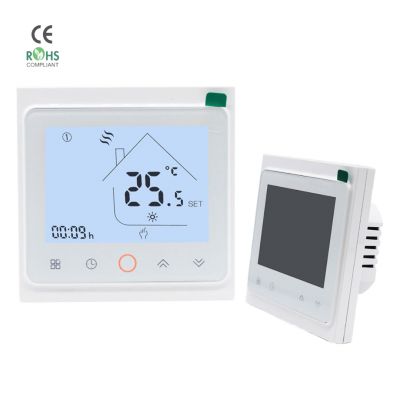

Digital Smart Wifi Wireless Internet Smart Boiler Home Electronic Programmable Thermostat
Digital Smart Wifi Wireless Internet Smart Boiler Home Electronic Programmable Thermostat Digital Smart Wifi Wireless Internet Smart Boiler Home Electronic Programmable Thermostat Digital Smart Wifi Wireless Internet Smart Boiler Home Electronic Programmable Thermostat Digital Smart Wifi Wireless Internet Smart Boiler Home Electronic Programmable Thermostat Digital Smart Wifi Wireless Internet Smart Boiler Home Electronic Programmable Thermostat

Digital Smart Wifi Wireless Internet Smart Boiler Home Electronic Programmable Thermostat

Product ID : HTW-31-WKT13-WF
Product Tags :
Product Attributes :

This surface-mounted radio thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time.

Product Description

>> General

This wireless thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time.


 >> Feature

*  Large display can be clearly read with the background lighting.

*  Easy to fit thermostat and receiver.

*  Five buttons make it easy to use.

*  4 periods of each day programmable

*  The display shows the set temperature as well as the measured temperature, time.

*  Temperature display in degrees Celsius.

*  The wifi thermostat with remote sensor is supplied with a wall-fixing frame, base and a very compact receiver (surface-mounted).



 >> Technical Data

Thermostat operating voltage:               2 x AA1.5 V, alkaline batteries.

Backup storage:                                     EEPROM

Receiver operating voltage:                   230 VAC, 50/60 Hz

Maximum voltage / (ohmic) load:            250 VAC/10 A.

Frequency:                                             868 MHz

Channel selection:                                  By programming the thermostat and the receiver.

Switching options:                                   7day, 4 periods each day.

Receiver switch contacts:                       NO and NC.

Temperature settings:                            5°C ~ 35°C, 0.5°C increments.

Accuracy:                                               +/- 0.5°C

Thermostat dimensions:                        Surface mounted, 135mm x 87.5 mm x 23.2mm.

Receiver dimensions:                            Surface mounted, 86mm x 86 mm

Color:                                                    White

IP protection rating:                               20.

Certification:                                          CE, Rohs, R&TTE

>> Display and Buttons

wireless wifi smart thermostat Display and Buttons.png

 >> Wiring Diagram

Wiring Diagram.png


Hotowell manufacturing capacity.jpg
