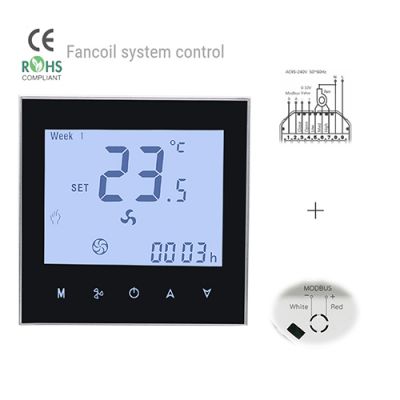

Fireproof Housing Smart Room Thermostat 4 Pipe Fan Coil Thermostat with External Sensor

Product ID : HTW-WF11-FC

Product Tags : Fan coil thermostat Room thermostat modbus thermostat

Product Attributes :

This Modbus fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description

Fireproof Housing Smart Room Thermostat 4 Pipe Fan Coil Thermostat with External Sensor

>> General

HTW-WF11-FC series FCU room thermostat is widely used in the Fan Coil Unit system to control fans and motorized zone valves of heating/cooling central air-conditioning, it mainly includes 2 pipe system and 4 pipe system applications. There are available options including Wi-Fi, Modbus or keycard, external sensor, etc.

>> Ordering Guide

HTW-WF11-FC-**	-2	2 pipe(tube) system
FCU Room Thermostat	-4	4 pipe(tube) system
	-M	0~10V Modulating Valve Output
	-N	RS485 Modbus RTU communication
	-K	Key Card occupancy input
	-W	WiFi Connection
	-T	Real Time Clock
	-P	Programmable
	-E	External Temperature Sensor
	-24v	Power Supply with 24Vac
e.g. HTW-WF11-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
