T6861 Series FCU Thermostat Green Backlight Non-programmble Room Air Conditioner HTW-T6861-H2WG

Product ID : HTW-T6861

Product Tags : Fan coil thermostat

Product Attributes :

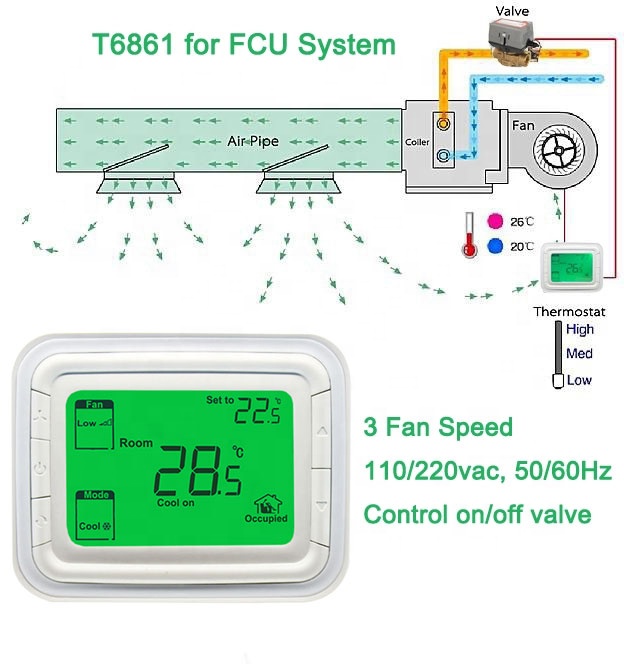

This digital thermostats are designed for application of 3-speed fan and valves in fan coil system. This model with total the same functions with Honeywell raw model T6861.

Include T6861H1WB, T6861H1WG, T6861H2WB, T6861H2WG, T6861V1WB, T6861V1WG, T6861V2WB, and T6861V2WG eight types Choice, could meet different requirements accordingly.

Product Description

 T6861 Series FCU Thermostat Green Backlight Non-programmble Room Air Conditioner HTW-T6861-H2WG

>> General
This digital thermostats are designed for application of 3-speed fan and valves in fan coil system. This model with total the same functions with Honeywell raw model T6861.Include T6861H1WB, T6861H1WG, T6861H2WB, T6861H2WG, T6861V1WB, T6861V1WG, T6861V2WB, and T6861V2WG eight types Choice, could meet different requirements accordingly.

>>Features

• Slim design, direct installation on 86 size box • Stylish and elegant blue/green backlight with blue/reen colour ring • 2-pipe/4-pipe integrated into one unit with easyconfiguration • Big LCD display with English and icons • Easy to install and set-up • Selectable room temperature or setpoint display • Manual or automatic fan speed selection • Remote temperature sensor • Energy saving mode activation by button press ordry contact (key card) • Adjustment of display room temperature • Temperature unit either oC or oF • User setting can be kept when power off • Freezing protection function available • Lock or unlock keys or part of keys in Installer Setup • Heat and cool setpoint limitation for energy saving

>> Model Summary

HTW-51-1000	Horizontal/Vertical	White Frame Backlight	Time on/off	2-pipe/4-pipe	Power supply	Energy Saving	Ventilation	Manual/Automatic Fan	Remote Sensor
H2WB	Horizontal	Blue	Y	2\4	220	Y	Y	Y	Y
V2WB	Vertical	Blue	Y	2\4	220	Y	Y	Y	Y
H2WG	Horizontal	Green	Y	2\4	220	Y	Y	Y	Y
V2WG	Vertical	Green	Y	2\4	220	Y	Y	Y	Y
H1WB	Horizontal	Blue	Y	2\4	110	Y	Y	Y	Y
V1WB	Vertical	Blue	Y	2\4	110	Y	Y
