Home Products Hotowell Products Digital Programmable Thermostat Nest Shape Floor Heating Temperature Controller HTW-WF06
Digital Programmable Thermostat Nest Shape Floor Heating Temperature Controller HTW-WF06
Digital Programmable Thermostat Nest Shape Floor Heating Temperature Controller HTW-WF06 Digital Programmable Thermostat Nest Shape Floor Heating Temperature Controller HTW-WF06 Digital Programmable Thermostat Nest Shape Floor Heating Temperature Controller HTW-WF06 Digital Programmable Thermostat Nest Shape Floor Heating Temperature Controller HTW-WF06 Digital Programmable Thermostat Nest Shape Floor Heating Temperature Controller HTW-WF06

Digital Programmable Thermostat Nest Shape Floor Heating Temperature Controller HTW-WF06

Product Tags :
Product Attributes :

HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Residential buildings, Schools, Hotels,Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating,Water Heating or Water/Gas Boiler systems.

Product Description
Product Description



Digital Programmable Thermostat Nest Shape Floor Heating Temperature Controller HTW-WF06

>> General

HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Residential buildings, Schools, Hotels,Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating,Water Heating or Water/Gas Boiler systems.
>> Ordering Guide



>> Ordering Guide
Specification
Power Supply
95~240Vac, 50/60Hz
Sensor
NTC3950, 10K
Current Load
Fan Relay 5A(3A-inductive) Temperature Accuracy
Temperature Accuracy
±0.5°C or ±1℉
Valve Relay 3A(1A-inductive)
Set-Point Range
5~35°C
Storage Temp.
-5 ~ 45 °C
Display Temp. Range
5 ~ 99°C
Power Consumption
< 1.5W
Timing Error
< 1%
Housing Material
PC +ABS ( Fireproof)
Installation Box
EU or Standard Electric Box
Wires on Terminals
Wire 2 x 1.5 mm² or 1 x 2.5 mm²

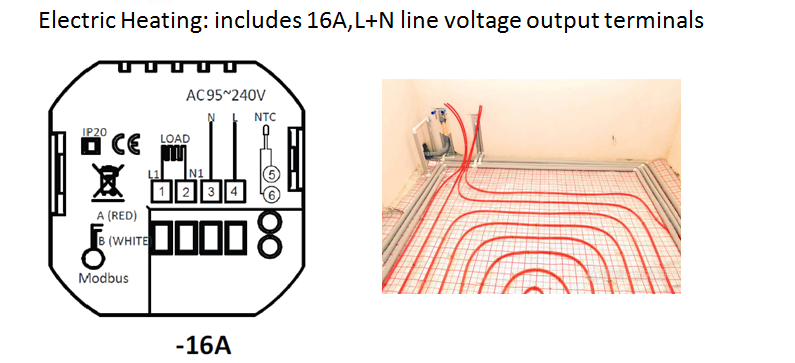

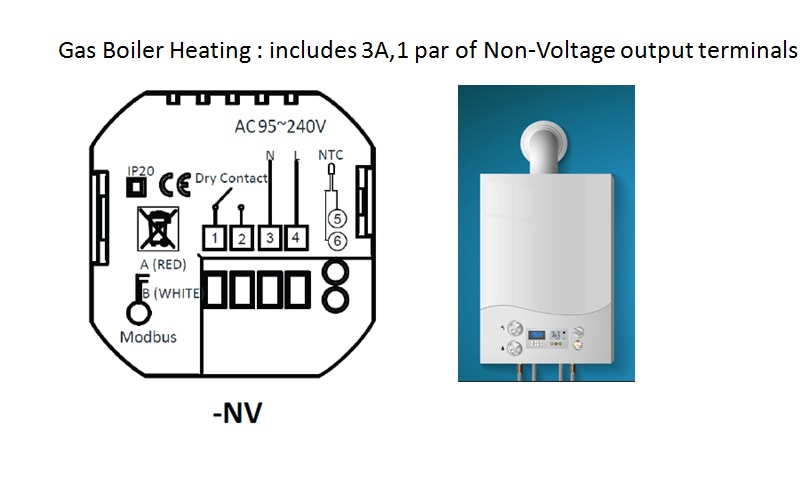

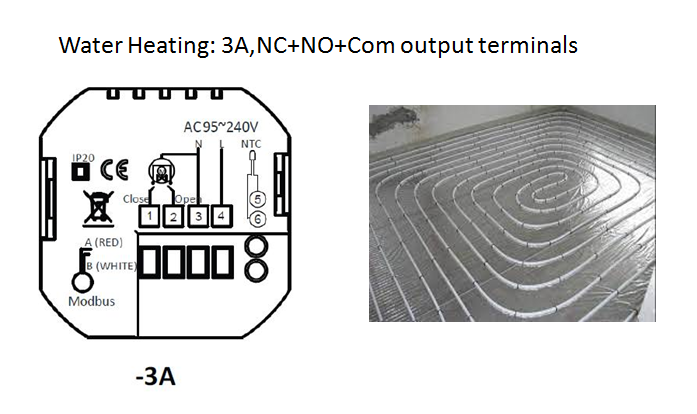

Installation
Dimensions and Display
Packing & Delivery
Company Profile
Hotowell is a high-tech company with rich experiences in product design and manufacturing, knowledge about global HVAC standards,and highly-trained team. Our objective is to produce and design user-friendly HVAC products on the highest technical level forimproving people's experience in temperature/environment comfort.
Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc.covering industrial, commercial and residential temperature controls.
FAQ
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.

Q2:What is the MOQ, small quantities accetaple?

A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.

Q3:How is your products' quality and warrenty?

A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.

Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
