Smart Thermostat Boiler Heating Thermostat Touch Panel Child Lock Function Hotowell HT03

Product ID : HTW-HT03-NV1

Product Tags : Room thermostat boiler thermostat smart thermostat

Product Attributes :

HTW-HT03 series thermostat can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

Product Description

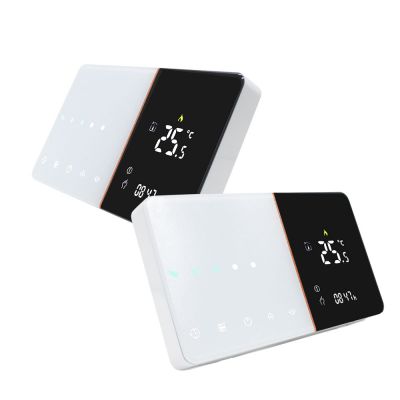

Smart Thermostat Boiler Heating Thermostat Touch Panel Child Lock Function Hotowell HT03

>> General

HTW-HT03-NV1

HTW-HT03 series thermostat is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices, etc. to maintain an ideal room temperature. It can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

>> Ordering Guide

HTW-HT03-**	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-HT03-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
