24V Room Thermostat Control Proportional Valve Same as Honeywell T6865

24V Room Thermostat Control Proportional Valve Same as Honeywell T6865

24V Room Thermostat Control Proportional Valve Same as Honeywell T6865

24V Room Thermostat Control Proportional Valve Same as Honeywell T6865

24V Room Thermostat Control Proportional Valve Same as Honeywell T6865

24V Room Thermostat Control Proportional Valve Same as Honeywell T6865

24V Room Thermostat Control Proportional Valve Same as Honeywell T6865

Product ID : HTW-T6865

Product Tags : Fan coil thermostat Room thermostat

Product Attributes :

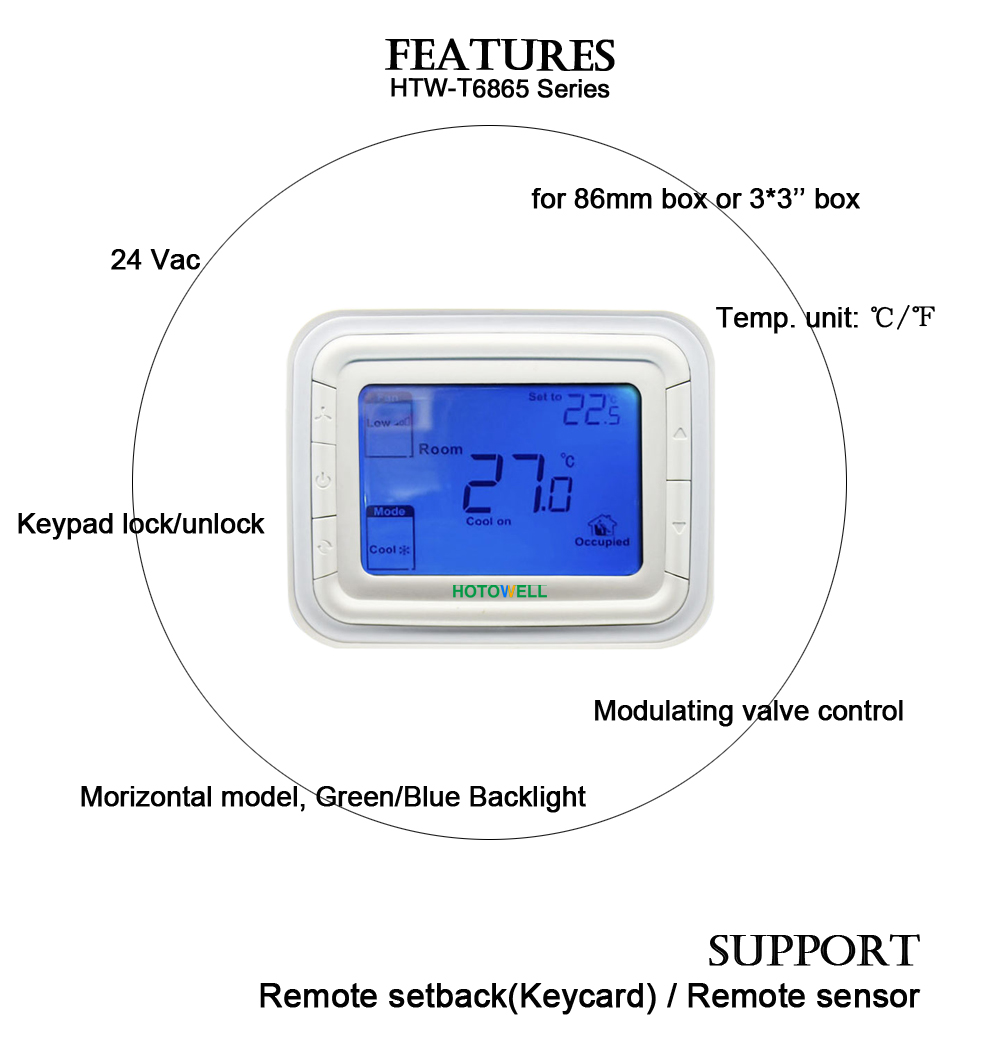

T6865 series thermostats are designed for the application of a 3-speed fan and modulating valves in a fan coil system.

Product Description

24V Room Thermostat Control Proportional Valve Same as Honeywell T6865

>> General

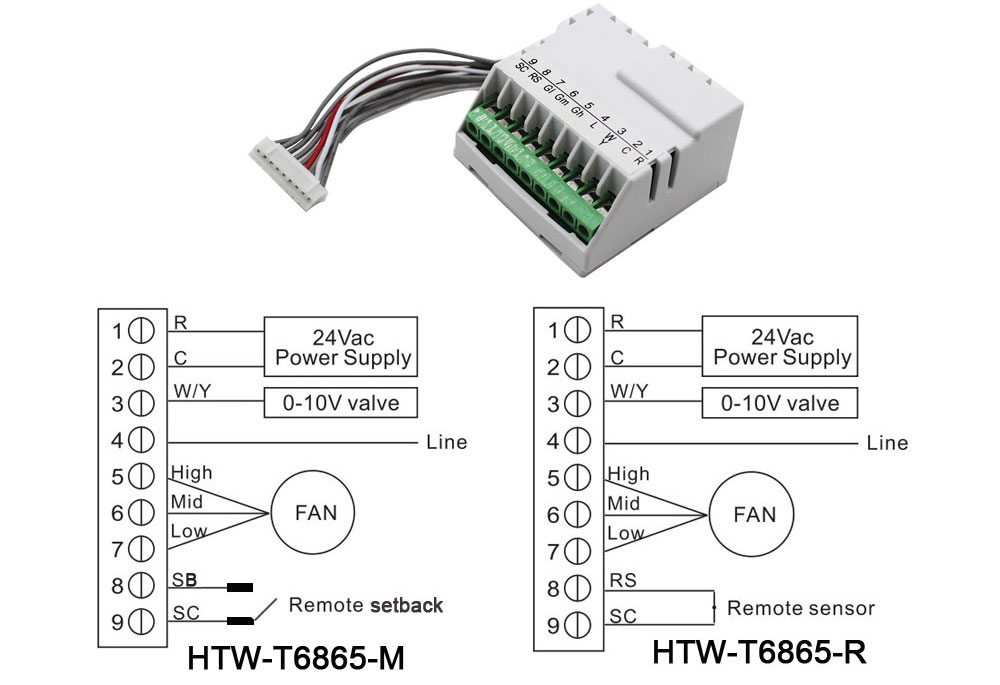

T6865 series thermostats are designed for the application of a 3-speed fan and modulating valves in a fan coil system. There are four sub-models according to the different functions and backlight, that could meet different requirements accordingly.

>> Ordering Guide

Model	Direction	Backlight	2 pipe	Power	Feature
T6865H2WB-M	Horizontal	Blue	2 pipe	24Vac	Remote Setback(Keycard)
T6865H2WG-M		Green			Remote Setback(Keycard)
T6865H2WB-R		Blue			External Sensor
T6865H2WG-R		Green			External Sensor

>> Specification

Power supply		24(+/-10%)VAC
Frequency		50Hz
Control algorithm		Pl, modulating output
Accuracy		+/- 1°C at 21 °C
Relay life		100,000 times
Setpoint range		10-32°C
Display range		0-37°C
Installation		Installed on 86x86mm junction box or 3x3 inch box
Protection Class		IP20
Environmental		Operation temperature: -18~49°C
