Hotowell WF06 Fan Coil Wifi Smart Programmable Touch Screen Thermostat For Room
Product ID : HTW-WF06-FC
Product Attributes :
HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
Product Description
Product Description

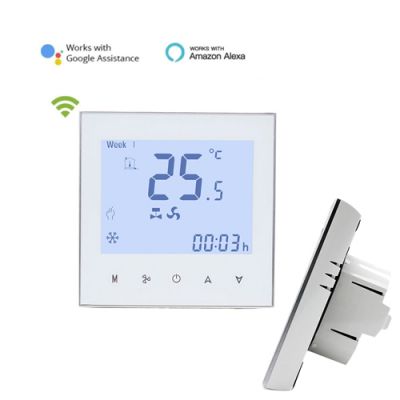

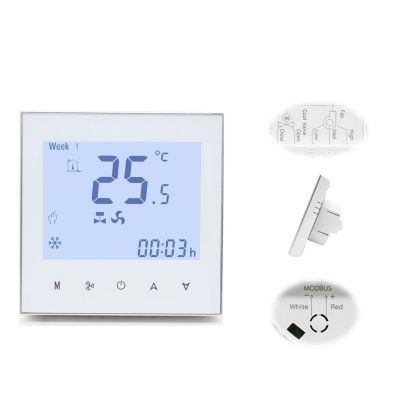

Hotowell WF06 Fan Coil Wifi Smart Programmable Touch Screen Thermostat For Room
>> General
HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

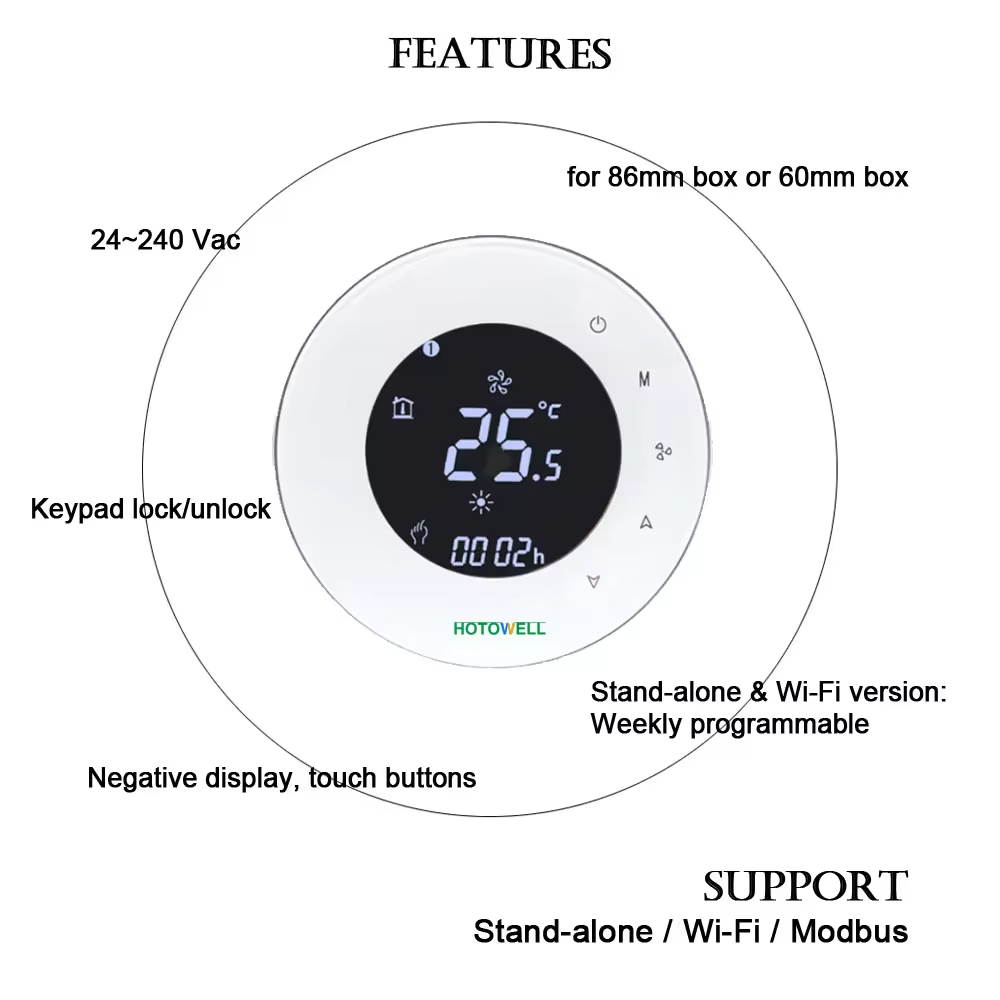

>> Features
>> Technical Parameter
| HTW-WF06-FC-** | |
| Power Supply | 95~240Vac, 50/60Hz |
| Current Load | Fan Relay 5A(3A-inductive); Valve Relay 3A(1A-inductive) |
| Storage Temp. | -5 ~ 45 °C |
| Power Consumption | < 1.5W |
| Housing Material | PC +ABS ( Fireproof) |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 |
| Protection Class | IP20 |
| Sensor | NTC3950, 10K |
| Temperature Accuracy | ±0.5°C or ±1℉ |
| Set-Point Range | 5~35°C |
| Display Temp. Range | 5 ~ 99°C |
| Timing Error | < 1% |
|
Installation Box
|
EU or Standard Electric Box |
| Operating Buttons | Capacitive Touch Buttons |

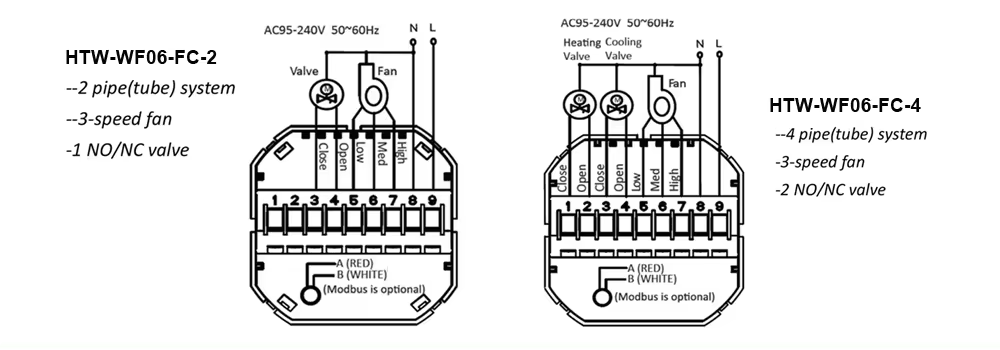

>>Typical wiring disgram
Details

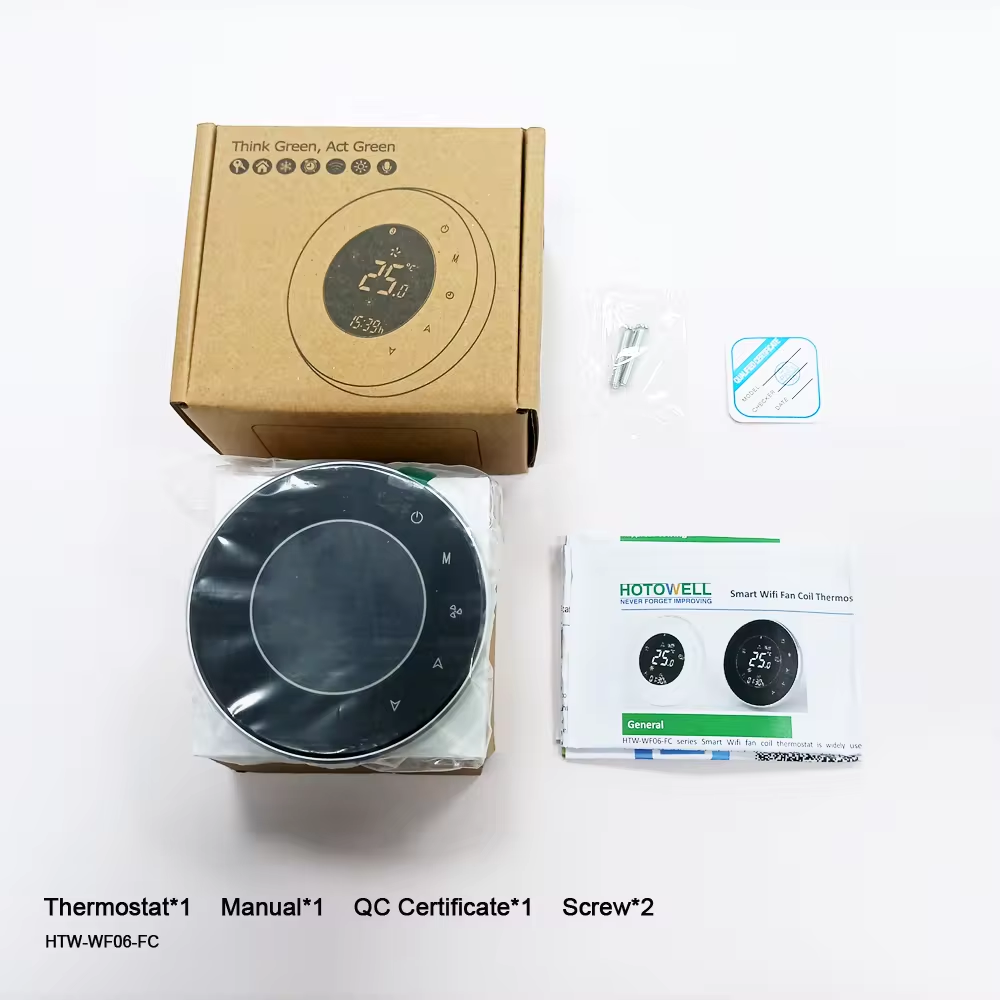

Packing & Delivery
