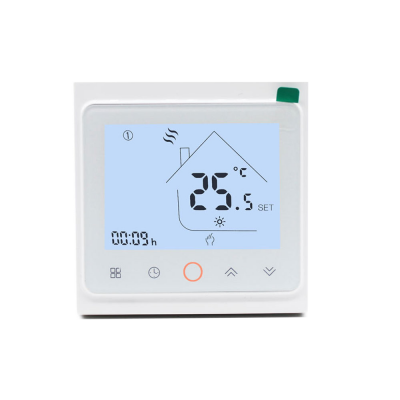

Hotowell electric floor heating controller thermostat factory Wifi wireless thermostat for boiler

Product ID : HTW-WF05

Product Tags : Heating Thermostat Room thermostat Wifi thermostat Wireless Thermostat boiler thermostat

Product Attributes :

HTW-WF05 is suitable for electric heating, water heating, wall-hung boilers and boiler-temperature control systems.It can be used in smart controlling hourses, shopping malls, and industrial places.

Product Description

Hotowell electric floor heating controller thermostat factory Wifi wireless thermostat for boiler

>> General

HTW-WF05 is suitable for electric heating, water heating, wall-hung boilers and boiler-temperature control systems.It can be used in smart controlling hourses, shopping malls, and industrial places.

>> Ordering Guide

HTW-WF03- **
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF05-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals

 >> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
