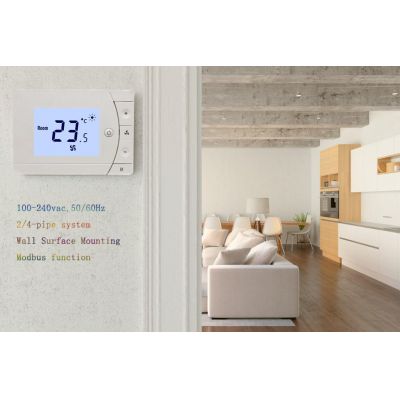

Mechanic modbus fcu room thermostat for heating/Cooling ,ventilation and airconditioning
HTW-31-F13 Series Programmable Thermostats are used to control room temperature in commercial,industrial and residential environment via controlling fan coil units and motorized zone valves, motorized fan and valves of heating/cooling central air-condition and system thereof,and uses NTC to detect the room temperature and compares it with desired setpoint so as to maintain the correct temperature.
Datasheet of Programmable Digital Thermostat HTW-31-F13.pdf
>> General
HTW-31-F13 Series Programmable Thermostats are used to control room temperature in commercial, industrial and residential environment via controlling fan coil units and motorized zone valves, motorized fan and valves of heating/cooling central air-condition and system thereof,and uses NTC to detect the room temperature and compares it with the desired setpoint so as to maintain the correct temperature.
>> Features
• Big LCD Display
• Adjustable Heat/Cool/ Heat&Cool /Fan mode control
• Adjustable Manual 3-speed and Auto Fan Speed control
• Display of Room or Set-Point
• 2/4-pipe system configurable
• 7-Day Separate 4-Events with set-point Programmable
• Occupied/Unoccupied Key-Card with NO/NC input configurable
• Wall Surface Mounting
>> Technical parameters
| Model | HTW-31-F13 |
| Backlight color | Blue/White |
| Power Supply | 100-240VAC±10%,50/60Hz(24VAC/2AA DC optional) |
| Control temperature | +5~+35ºC |
| Standard load | ≤3A |
| Self power consumption | <1W |
| Sensor | NTC |
| Temperature control precision | ±1ºC |
| Temperature measurement resolution | 0.1ºC |
| Transportation storage environment | Temperature: -20~+70, relative humidity: RH < 92% |
| Display temperature range | Temperature: 0~+45ºC |
| Shell material | PC flame retardant materials |
| Dimension (LxWxH) | 94mm×34mm×28mm |
>> Display and buttons
