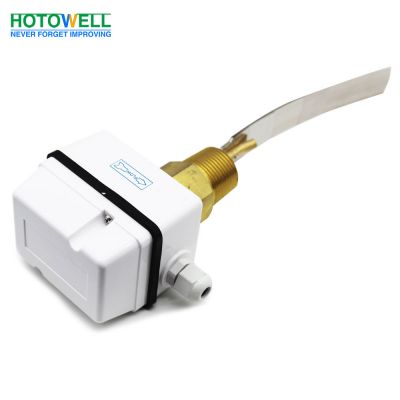

High Quality Paddle type Electronic Water Flow Control Switch
Features:
● Flow control of water and normal media
● 15(8A) 250VAC switch rating
● IP65, class I enclosur
● Brass/S.S Material optional
20150715 Version-HTW-AFS SERIES WATER FLOW SWITCH.pdf
>> Features
● Flow control of water and normal media
● IP65, class I enclosure
>>Specification
Type of operation On/Off, single-stage, micro switch
Output SPDT 15(8A) 24/250Vac
Flow rates See flow rate table
Flow rate setting adjustment Internal srew
Sensing element Paddle
Liquid applications Hot, chilled, well, pool and sea water,
Brine or ethylene glycol
Parts material in contact with fluid Brass
Paddle material Stainless steel
Liquid temperature -20C-120C
Permissible ambient temperature -40C-85C
Permissible ambient humidity 10…90% RH, non-condensing
Cable entry M18
Housing Galvanized Steel Plate, ABS or PC cover
Protection IP65
Color White
Weight 1.0Kg
