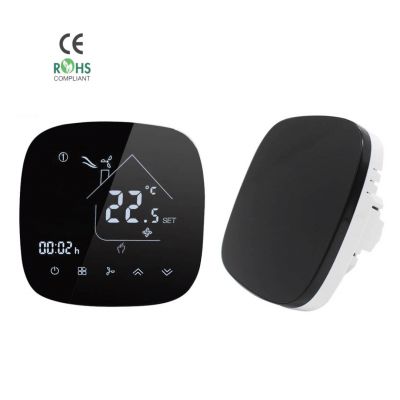

Hotowell Digital Programmable Thermostat Cooling Thermostat With WiFi Control

Product ID : HTW-WF06-FC-2W/4W

Product Tags : Fan coil thermostat Room thermostat Wifi thermostat

Product Attributes :

HTW-WF06-FC series smart fan coil thermostat is widely used to maintain an ideal room temperature.

Product Description

Hotowell Digital Programmable Thermostat Cooling Thermostat With WiFi Control

>> General

HTW-WF06-FC-2W/4W
HTW-WF06-FC series smart fan coil thermostat is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices, etc. to maintain an ideal room temperature.

>> Ordering Guide

HTW-WF06- FC-**	-2	2 pipe(tube) system	-W	Wi-Fi
Smart Fan Coil Thermostat	-4	4 pipe(tube) system	-B	BACnet
	-M	Modulating output	-P	Programmable
	-N	Modbus RTU communication	-E	External Temperature Sensor
	-K	Key Card occupancy input	-24v	Power Supply with 24Vac
e.g. HTW-WF06-FC-4W24: refers to application: 3 fan speed, 4 pipe system, Wi-Fi, 24Vac

>> Specification

Power Supply	24Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A (3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A (1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5~99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
