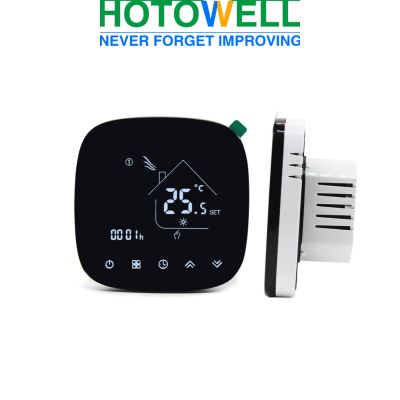

Electric Underfloor Heating Thermostat Digital Programmable Thermostat Temperature Controller ECB6

Product ID : HTW-ECB6

Product Tags : Heating Thermostat Room thermostat Wifi thermostat

Product Attributes :

HTW-ECB6 series thermostat can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems

Product Description

Electric Underfloor Heating Thermostat Digital Programmable Thermostat Temperature Controller ECB6

>>General
HTW-ECB6 series Wifi thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

>>Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm² or 1 x 2.5 mm²
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons

>>Display

Ordering Guide

HTW-ECB6- **	Smart Heating Thermostat
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-ECB6-3A refers to application: Water Heating, 3A, NC+NO+Com output terminals
