Digital Fan Coil Air Condition 4 Level Speeds Thermostat Switch
Digital Fan Coil Air Condition 4 Level Speeds Thermostat Switch Digital Fan Coil Air Condition 4 Level Speeds Thermostat Switch Digital Fan Coil Air Condition 4 Level Speeds Thermostat Switch Digital Fan Coil Air Condition 4 Level Speeds Thermostat Switch Digital Fan Coil Air Condition 4 Level Speeds Thermostat Switch

Digital Fan Coil Air Condition 4 Level Speeds Thermostat Switch

Product ID : HFS25
Product Tags : Fan coil thermostat
Product Attributes :

This digital thermostats are designed for application of 3-speed fan and valves in fan coil system. This model with total the same functions with Honeywell raw model T6861.

Include T6861H1WB, T6861H1WG, T6861H2WB, T6861H2WG, T6861V1WB, T6861V1WG, T6861V2WB, and T6861V2WG eight types Choice, could meet different requirements accordingly.
Product Description
Product Description





>>Features




>>Ordering Guide

Power supply
110(+/-10%)VAC,220(+10%,-15%)VAC
Frequency
50/60HZ
Control algorithm
Pl, On/off output
Accuracy
+/- 1°C at 21 °C
Rating capacity
For 220V power supply :4( 2)A for fan load, 2(1)A for zone valve
Cycle times
100000
Setpoint range
10-32°C
Display range
0-37°C
Installation
Installed on 86x86mm junction box or US2X4 inch
Protection Class
P20
Environmental
Operation temperature-18~49°C
Conditions
Shipping temperature -35~65°C, Relative humidity 5-90%
>> Model Summary
<td style="margin: 0px; padding: 0px; font-style: inherit; font-variant: inherit;
Online Inquiry
Related Products
Fan coil thermostat

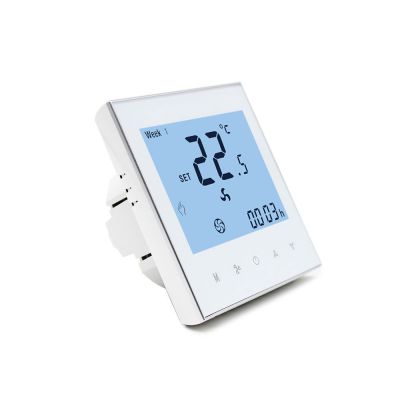

1 Load Digital Heating Valve 1 Load Modulating Cooling Valve With Modbus FCU Smart Room Thermostat
HTW-WF01-FC
Home automation,Wifi thermostat,air conditioner thermostat,heat pump thermostat,smart thermostat

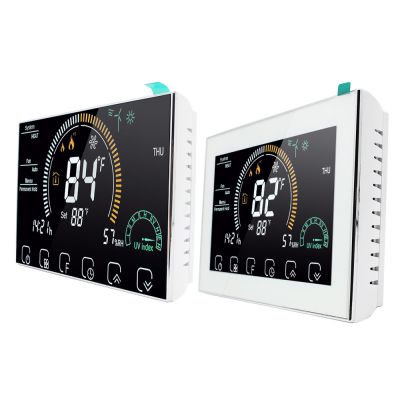

Ac Pro MT08 smart Programmable Thermostat 1 Heat 1 Cool (HP/AC) for home
HTW-MT08
Fan coil thermostat,Room thermostat,Thermostat,hotel thermostat
Digital Thermostat T6861 Fcu Room Thermostat
T6861

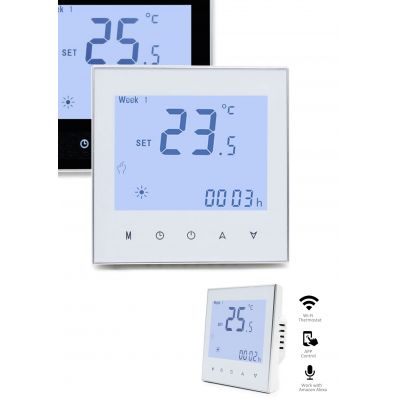

WiFi Smart Thermostat Temperature Controller
HTW-WF01-FC
About Us

Hotowell manufactures worldwide famous brand level HVAC products with competitive prices.

We got pretty good reputation and feedbacks from markets due to stable performance and trust-worth quality.

Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. ......[more>>]

Info
Products
News
Case
Blog
Links
Twitter
Facebook
Linkedin
Pinterest
Youtube
Instagram
Made-In-China
Behance
Hotowell Previous Version Website
COPYRIGHT © Hotowell International Co., Limited ALL RIGHTS RESERVED.
HTW-51-1000
Horizontal/Vertical
White Frame Backlight
Time on/off
2-pipe/4-pipe
Power supply
Energy Saving
Ventilation
Manual/Automatic Fan
Remote Sensor
H2WB
Horizontal
Blue
Y
2\4
220
Y
Y
Y
Y
V2WB
Vertical
Blue
Y
2\4
220
Y
Y
Y
Y
H2WG
Horizontal
Green
Y
2\4
220
Y
Y
Y
Y
V2WG
Vertical
Green
Y
2\4
220
Y
Y
Y
Y
H1WB
Horizontal
Blue
Y
2\4
110
Y
Y
Y
Y
V1WB
Vertical
Blue
Y
2\4
110
Y
Y
Y
Y
H1WG
Horizontal
Green
Y
2\4
110
Y
Y
Y
Y
V1WG
