HVAC System Digital Room Thermostat Wifi Thermostat Programmable Thermostat for Fan Coil Unit

HVAC System Digital Room Thermostat Wifi Thermostat Programmable Thermostat for Fan Coil Unit

Product ID : HTW-EB-FC

Product Tags : Fan coil thermostat Room thermostat

Product Attributes :

HTW-EB-FC series smart Wi-Fi fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description

Description

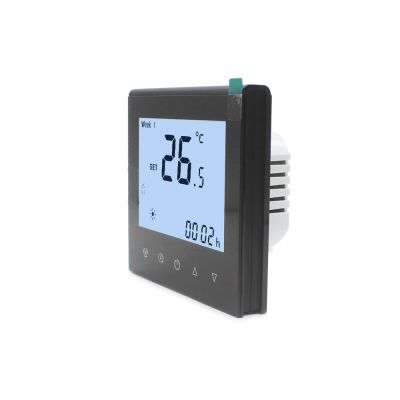

HVAC System Digital Room Thermostat Wifi Thermostat Programmable Thermostat for Fan Coil Unit

>> General

HTW-EB-FC series smart Wi-Fi fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

>> Ordering Guide

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
