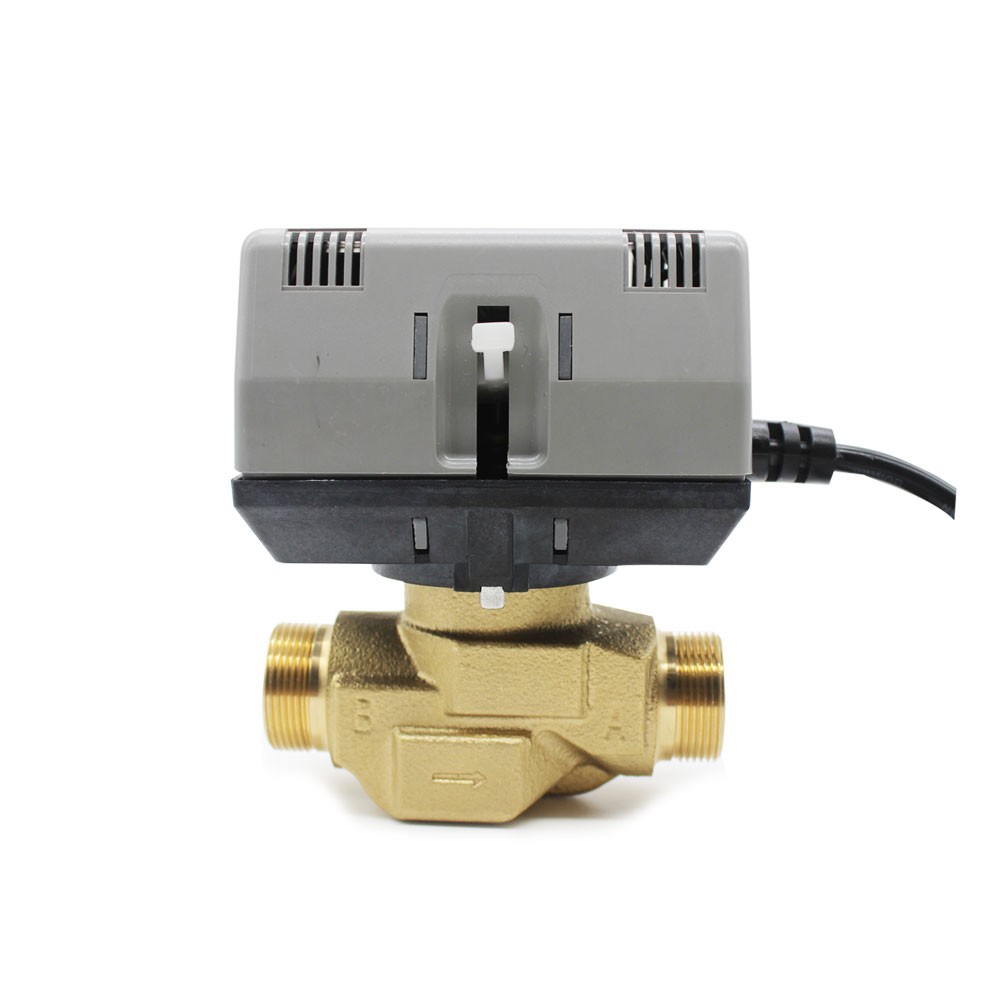

Brass Zone Valve for Hot Water Heating System
HTW-V61 series motorized valves are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.
>> General
HTW-V61 series motorized valves are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.

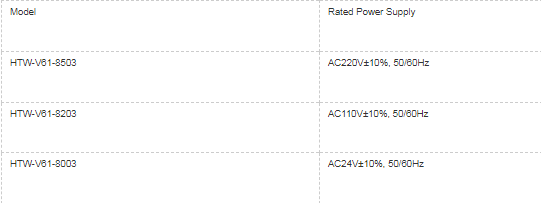

>> Models & Specifications of Actuator
Model Rated Power Supply
HTW-V61-8503 AC220V±10%, 50/60Hz
HTW-V61-8203 AC110V±10%, 50/60Hz
HTW-V61-8003 AC24V±10%, 50/60Hz
>> Models & Specifications of Valve Body
>> Technical parameters
• Consumption 5W
•Drive style Bi-direction reversible motor drive
•Cooperate time with thermostat the valve open within 6s at 60HZ
•N.W.(Kg)-Actuator 0.35
•Medium Cool/hot water
•Liquid temperature 1~95°C
•Pressure(MPa) 1.6
•Environment temperature 0~65°C the max relative humidity, non-condensing
•Storage temperature -20~65°C the max relative humidity, non-condensing
>> Wring Diagram
>> Dimensions
>> Installation
