UL Certificated Underfloor Heating GFCI Thermostat With External Sensor For Canada market
UL Certificated Underfloor Heating GFCI Thermostat With External Sensor For Canada market UL Certificated Underfloor Heating GFCI Thermostat With External Sensor For Canada market UL Certificated Underfloor Heating GFCI Thermostat With External Sensor For Canada market UL Certificated Underfloor Heating GFCI Thermostat With External Sensor For Canada market

UL Certificated Underfloor Heating GFCI Thermostat With External Sensor For Canada market

Product ID : HTW-GM4
Product Tags :
Product Attributes :

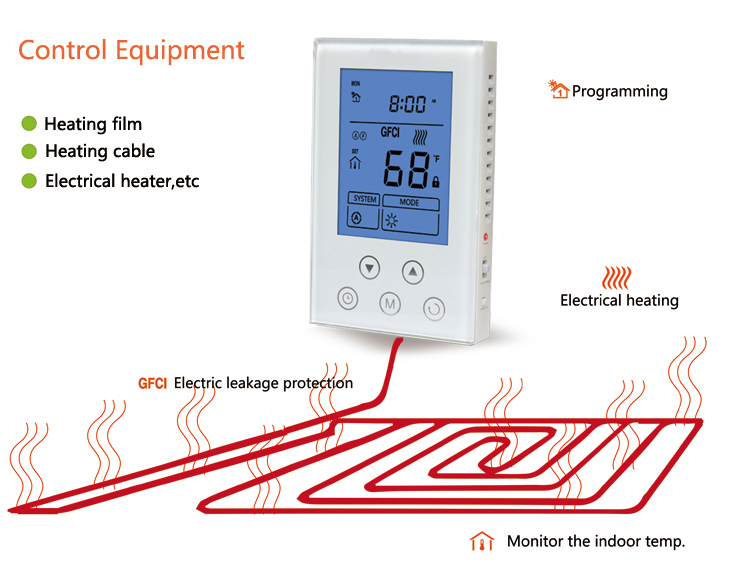

GM4 is a new intelligent heating thermostat for floor warming. It detects the indoor temperature and displays the corresponding value. This device automatically regulates the heating output on 120V/240V in accordance with the set point and the room temperature. The clock controls the 7-day user schedule. It is accurate and sensitive with high reliability and high performance.

Product Description

 >> General

GM4 is a new intelligent heating thermostat for floor warming. It detects the indoor temperature and displays the corresponding value. This device automatically regulates the heating output on 120V/240V in accordance with the set point and the room temperature. The clock controls the 7-day user schedule. It is accurate and sensitive with high reliability and high performance.

HTW-GM4 (18).jpg

 >> Specification

Power Supply

120VAC/240VAC 50/60Hz

Self-consumption

<2W

Installation   Way

120V electrical box, deep

Dimension

120mm   ×76mm

Outer Shell

Tempered glass +PC Alloy

Wiring

Wiring +Terminals

GFCI

Class A   5mA

Output Load

15Amp., resistive

Maximum Power

120VAC/ 1800W , 240VAC/ 3600W

Accuracy

±0.1℃(1℉ )

 >> Dispaly

GM4 display.jpg

 >> Wiring Diagram

GM4 display.jpg

 >> Installation

underfloor heating thermostat GM4 installation.jpg
