Black Room Thermostat

1.     General

Black hotel room temperature controller thermostat maintainS a high level of comfort and appropriate climate control for guests. Hotowell HTW-EW002 split digital fan coil thermostat includes two parts: Display Part and Relay Module Part. The two parts are communicated via 3-wire with carrier transmission technology connections, up to 50-meter non-loss communication which brings big convenience for hotel management. Good HVAC system design can help hotel save energy. Here we have some notes about fan coil system design issues in hotel application:

1).The distance between the air supply and exhaust outlets should be appropriate

Keep a distance of at least 3 meters between the air outlet and the air outlet to prevent short circuit.

2)The layout of the duct:

a) Minimize local resistance, that is, reduce the number of elbows, tees, and reducers

b) The radius of curvature of the center of the elbow should not be less than the diameter or side length of the duct, generally 1.25 times the diameter or side length can be used

c) To facilitate the adjustment of the air duct system, pressure measuring holes should be reserved before and after the branch point of the main pipe. The distance between the pressure measuring hole and the front partial pipe should be greater than 5b (b is the long side of the rectangular duct or the diameter of the circular duct), and the distance from the rear partial pipe should not be less than 2b. Pressure measuring holes should be reserved on the pipe section where the airflow is relatively stable at the outlet of the ventilator.

2.     Video Description

<iframe width="560" height="315" src="https://www.youtube.com/embed/OQh_a2b8fBI" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

3.     Thermostat Wiring Diagram

4.     Hotowell Top Rated Products

5.     Certifications

6.     Our company

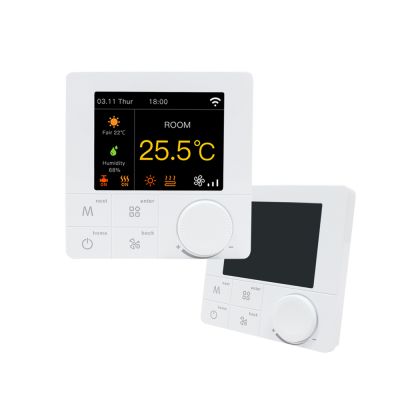

Hotowell International Co., Limited focuses on HVAC parts production for more than 10 years in China. We have wide range products portfolios from thermostat to water switch, top selling and most recommended thermostats are shown as below:

1)         Wi-Fi Digital Thermostat for heating system, popular in EU markets

2)         Alexa voice controlled enabled fancoil Thermostat

3)         Touch screen standalone Thermostat

4)         Modbus RS485 thermostat for hotels projects

5)         Bacnet fancoil thermostat

We place high priority on quality control of product as we donot want our customers purchase our products but struggling with repair or replacement. We are your supplier who you can rely on.

7.     FAQs

Q1: When did your factory established?

A1: Since 2010

Q2:How long is the production cycle?

A2:for sample order, it would be 7~14days; for bulk order, it would be 25-30 days

Q3: Could you print our company LOGO on the plate?

A3:Yes, we can OEM customized LOGO, and prefer MOQ be 500units+.

Q4: If l want the thermostat to be made in other special material, can you do it?

A4: Of course, you just need to provide us designed drawings or sample and R&D department will estimate that whether we can do or not, we will give you the most satisfactory reply.
