HTW-GM4 GFCI Touch screen Energy saving Heating Thermostat for Underfloor heating
HTW-GM4 GFCI Touch screen Energy saving Heating Thermostat for Underfloor heating HTW-GM4 GFCI Touch screen Energy saving Heating Thermostat for Underfloor heating HTW-GM4 GFCI Touch screen Energy saving Heating Thermostat for Underfloor heating HTW-GM4 GFCI Touch screen Energy saving Heating Thermostat for Underfloor heating HTW-GM4 GFCI Touch screen Energy saving Heating Thermostat for Underfloor heating

HTW-GM4 GFCI Touch screen Energy saving Heating Thermostat for Underfloor heating

Product ID : HTW-GM4
Product Attributes :

GM4 is a new intelligent heating thermostat for floor warming. It detects the indoor temperature and displays the corresponding value.

Product Description
Product Description

>> General

GM4 is a new intelligent heating thermostat for floor warming. It detects the indoor temperature and displays the corresponding value. This device automatically regulates the heating output on 120V/240V in accordance with the set point and the room temperature. The clock controls the 7-day user schedule. It is accurate and sensitive with high reliability and high performance.

>>Technical parameters

Power Supply
120VAC/240VAC 50/60Hz
Self-consumption
<2W
Installation Way
120V electrical box, deep
Dimension
120mm ×76mm
Outer Shell
Tempered glass +PC Alloy
Wiring
Wiring +Terminals
GFCI
Class A 5mA
Output Load
15Amp., resistive
Maximum Power
120VAC/ 1800W , 240VAC/ 3600W
Accuracy
±0.1℃(1℉ )

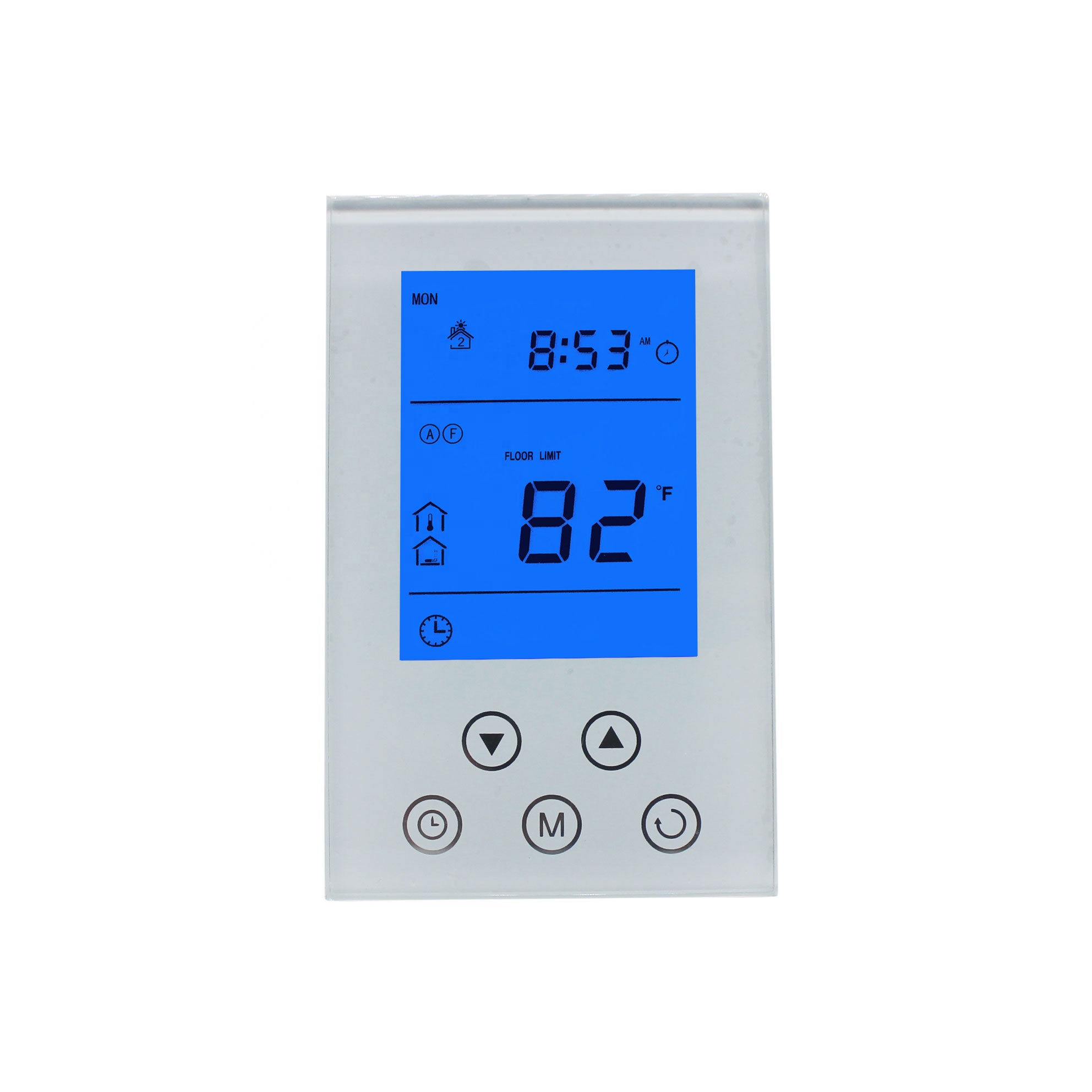

>>Display and Buttons

>>Wiring Diagram





Company Profile
Certifications
FAQ

Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.


Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.


Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.


Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.


Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.


Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
