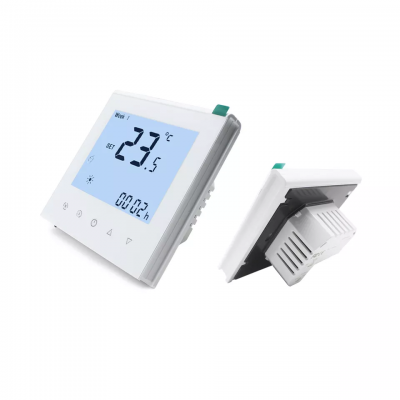

North American Market Air Conditioner Digital Room Thermostat
Programmable Multi-Stage Smart Thermostat
-Save about 25% bill on central air conditioning energy
-Humidity/UV/Weather Display
-Flexible wall mounted solution
-Alexa/Google Home smart 3rd party devices compatible
-Easy management for schools and light commercial applications by group control function
-7 days weekly programmable
-2.4GHz WiFi connection
North American Market Air Conditioner Digital Room Thermostat
>> Feature
--Device Sharing, Languages/Time synchronizes according to time zone.
--ºF or ºC configurable.
--Negative Black Screen, black lightness configurable.
--Fan switch ON and AUTO Configurable.
--Air Filter change Indicator, Temperature calibration.
--Touch Screen Keypad, Easy operation friendly.
--Built-in compressor protection.
>> Specification
●Power supply: AC24V 50Hz, or DC 24V, 50Hz
●Accuracy: ±1℉ or ±0.5℃
●Power comsumption: 2W
●Dimension:130*90*20.9mm
●Output: 1.0A(Inductive) per terminal, 3.0A (Resistance) per terminal
●Temperature range: 41ºF -99ºF (5ºC -37ºC)
●Display accuracy: ±1ºF
●Installation dimension: Wall Mounted or 2.36”/62±5mm(Europe,China,Japan) or 3.37”/86±3mm(USA, Italy)ds
>>Single/Multi Stage Application
●1H/1C (conventional)
●1H/2C (conventional)
●2H/2C (conventional)
●2H/1C (conventional)
●1H/1C (heat pump) : 1 Stage Heating, 1 Stage Cooling
●2H/1C (heat pump) : 2 Stage Heating, 1 stage Cooling
●2H/2C (heat pump) : 2 Stage Heating, 2 Stage Cooling
●3H/2C (heat pump): 3 Stage Heating, 2 Stage Cooling
>>2 Stage Compressor Wiring Diagram Demo
>>Company Profile
>>FAQs
|
Q1: Do you supply OEM or ODM? |
|
A: Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback. |
|
Q2: Which payments are acceptable? |
|
A: We accept T/T,Paypal,Western Union. |
|
Q3: How fast can I get the quotation? |
|
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us +86 0592 6538262 or tell us in your email so that we will regard your inquiry priority. |
|
Q4: What’s your production time? |
|
A:Usually production time is 15 to 20 days for quantity below 5,000pcs. |
