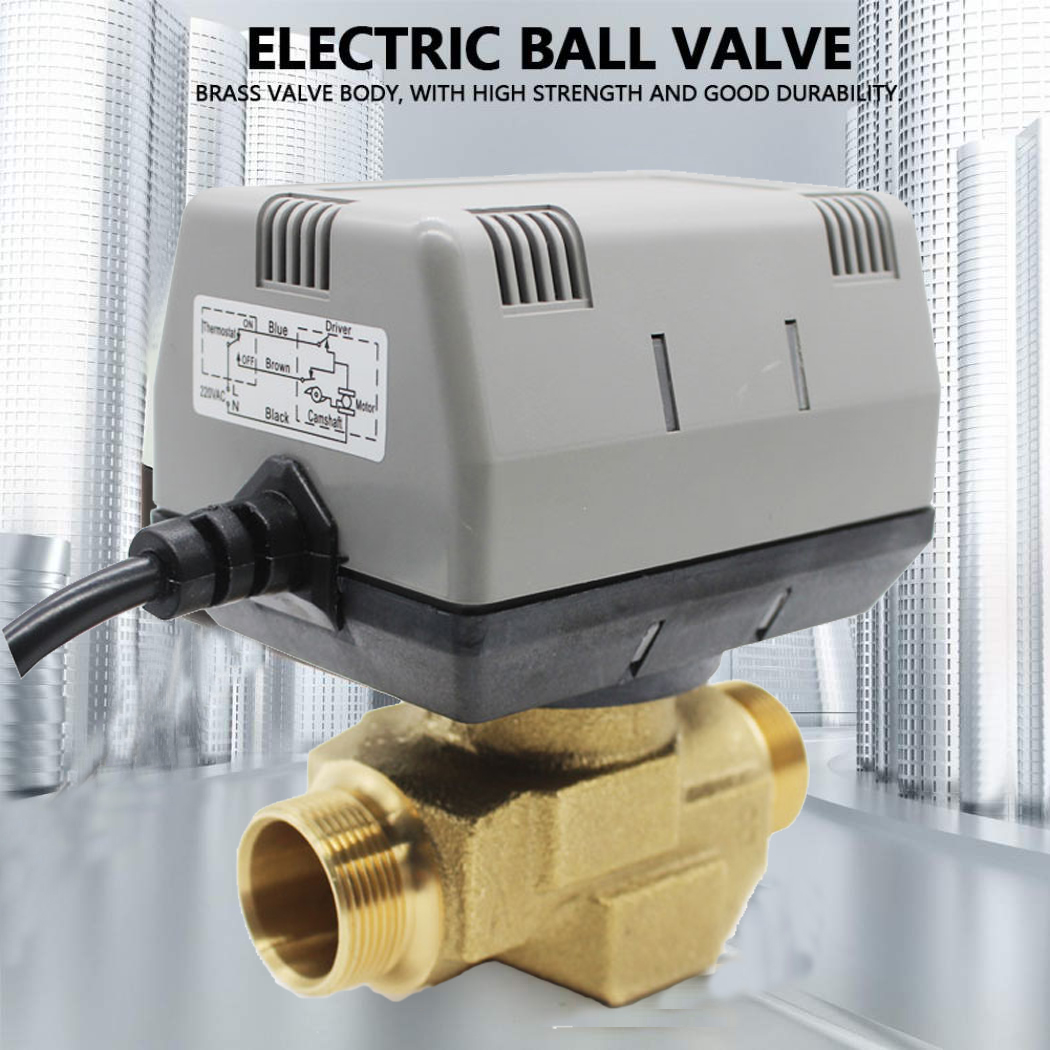

HVAC System 2 Way DN22 Female Motorized Valve
HTW-V61 series motorized valves are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.
HVAC System 2 Way DN22 Female Motorized Valve
>> General
HTW-V61 series motorized valves are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.
>> Models & Specifications of Actuator
Model Rated Power Supply
HTW-V61-8503 AC220V±10%, 50/60Hz
HTW-V61-8203 AC110V±10%, 50/60Hz
HTW-V61-8003 AC24V±10%, 50/60Hz

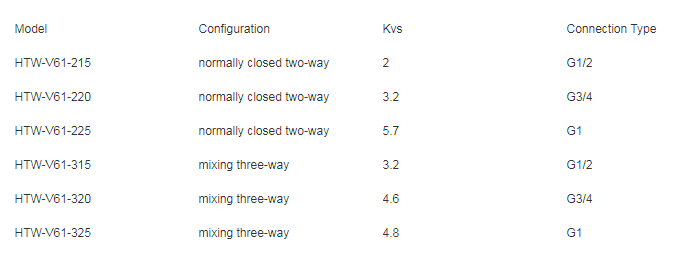

>> Models & Specifications of Valve Body
>> Technical parameters
• Consumption 5W
•Drive style Bi-direction reversible motor drive
•Cooperate time with thermostat the valve open within 6s at 60HZ
•N.W.(Kg)-Actuator 0.35
•Medium Cool/hot water
•Liquid temperature 1~95°C
•Pressure(MPa) 1.6
•Environment temperature 0~65°C the max relative humidity, non-condensing
•Storage temperature -20~65°C the max relative humidity, non-condensing
>> Wring Diagram
>> Dimensions
>> Installation
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
