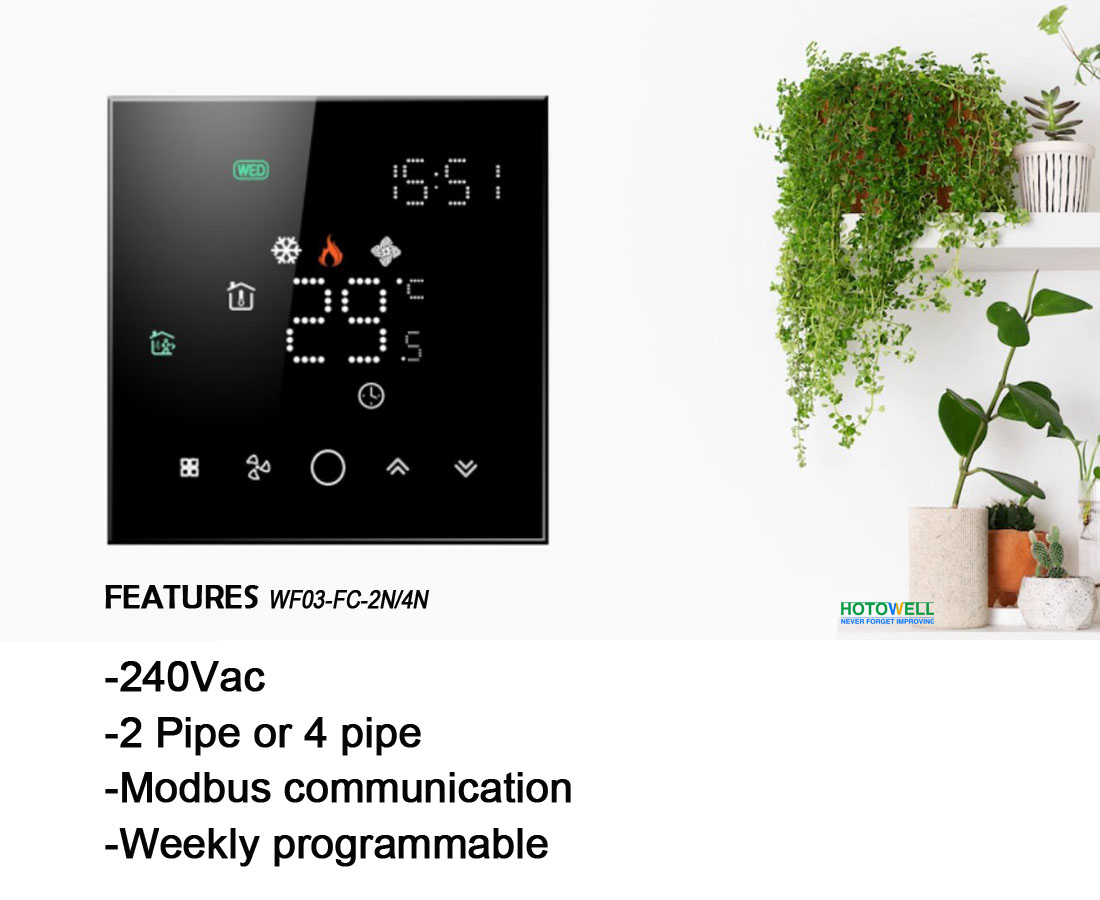

Hotel Modbus Thermostat Room Fan Coil Thermostat Temperature Controller with Programmable Function

Product ID : HTW-WF03-FC

Product Tags : Fan coil thermostat Room thermostat modbus thermostat

Product Attributes :

HTW-WF03-FC series Smart Wifi fan coil thermostat is widely used to main an ideal room temperature purpose.

Product Description

Hotel Modbus Thermostat Room Fan Coil Thermostat Temperature Controller with Programmable Function

>> General
HTW-WF03-FC series Smart Wifi fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

>> Dimension and Display

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
