Hotowell X16 Wireless control 16 zone Wiring centre box for underfloor heating system
HTW-31-X16W wireless Centre can control up to 16 zones simultaneously with thermostats. It is used to control any actuator or valve which requires a 230v AC signal. At the same time it offers the ability to operate a boiler through a volt free output.
Hotowell X16 Wireless control 16 zone Wiring centre box for underfloor heating system
| Model Number | HTW-31-X16W |
| Color | White |
| Power Source | 190-250VAC 50/60HZ |
| Relay Contact | 3A for water heating or boiler |
| Room temperature setting range | 5°C---35°C |
| Floor temperature control range | 5°C---60°C |
| Accuracy | 0.5°C |
| MOQ | 300 pcs |
| Sample lead time | 3-4 days |
| Logo Processing | Show directly on the up LCD right corner |
| Packing details | Carton size: 353.5*118.4*59.5mm |
| Qty: 20pcs/CTN | |
| N.W.:12kgs | |
| G.W.:14.00kgs | |
| Bulk lead time | 25days after payment confirmed |
| Payment terms | T/T |
| Export port | FOB Xiamen |
| OEM/ODM | 1) Customized designs, materials & colors available |
| 2) Special Design service provided by our RD department | |
| Standards | CE/Rohs |
>> Features
1. 8 zones, max. 16 zones
2. Compatible with various protocol: wired, wireless or wifi, Opentherm or Modbus RS485 etc.
3. Convenient and secure installation with cable slots, DIN rail and well organized wire distribution
4. Pump and boiler delay time selectable
5. Reserve more I/O terminal to meet more customized demand, like water sensor, timer, water leakage detection etc.
6. Besides 230V control, it also can do 24V output to connected with 24V actuator.
7. Compatible with more heating power supply from condensing boiler, electric boiler or heat pump etc.

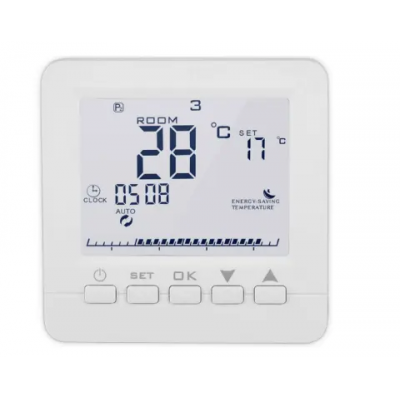

8. Connect with Hotowell underfloor heating wireless thermostat
9. Connect with Actuator or Valve or Mainfold.
>> Connection
>> Application
>> Hotowell Products
>> FAQ
Wiring centre box | heating controller centre| underfloor heating centre
