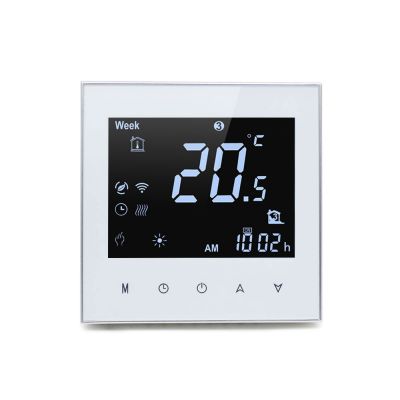

Echo Alexa/Google Home Smart 3rd Party Devices Compatible WiFi Thermostat for fan coil units

Product ID : HTW-EB-FC

Product Tags : Fan coil thermostat Room thermostat Temperature humidity controller Wifi thermostat air conditioner thermostat smart thermostat

Product Attributes :

HTW-EB-FC series Wifi thermostat is widely used in Fan Coil system for cooling and heating application.

Which include 2 pipe system (only for cooling) and 4 pipe system (cooling and heating are both available) applications.

There are three options includes Wifi, Modbus or Standard one.

Product Description

>> General

HTW-EB-FC series Wifi thermostat is widely used in Fan Coil system for cooling and heating application. Which include 2 pipe system (only for cooling) and 4 pipe system (cooling and heating are both available) applications. There are three options includes Wifi, Modbus or Standard one.

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
