HVAC System Best Value Smart Tuya Wifi Central Heating Thermostat
HVAC System Best Value Smart Tuya Wifi Central Heating Thermostat HVAC System Best Value Smart Tuya Wifi Central Heating Thermostat HVAC System Best Value Smart Tuya Wifi Central Heating Thermostat HVAC System Best Value Smart Tuya Wifi Central Heating Thermostat HVAC System Best Value Smart Tuya Wifi Central Heating Thermostat

HVAC System Best Value Smart Tuya Wifi Central Heating Thermostat

Product ID : HTW-WF06
Product Tags :
Product Attributes :

HTW-WF06 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

Product Description
Product Description



>> Features

*  Reduces the costs saving by only heating and cooling your home when it's necessary.

* Allows you to adjust your home's temperature at anytime and anywhere.
*  You can set up the whole week's temperature with your personal ideas.
* Extends the life of your HVAC system by alerting you when it's time to perform key maintenance tasks.

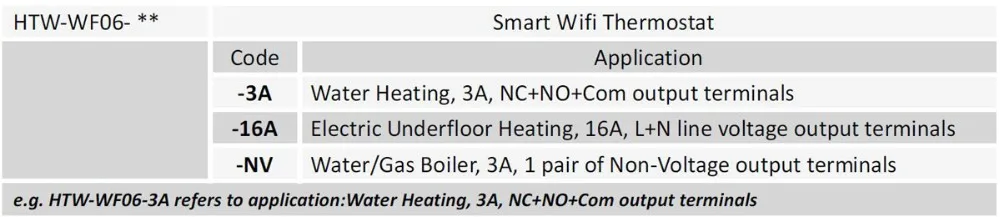

>> Ordering Guide

>> Specifications

Power Supply
95~240Vac, 50/60Hz
Sensor
NTC3950, 10K
Current Load
3A(-3A,-NV application)
Temperature Accuracy
±0.5°C or ±1℉
16A(-16A application)
Set-Point Range
5~35°C
Storage Temp.
-5 ~ 45 °C
Display Temp. Range
5 ~ 99°C
Power Consumption
< 1.5W
Timing Error
< 1%
Housing Material
PC +ABS ( Fireproof)
Installation Box
EU or Standard Electric Box
Wires on Terminals
Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class
IP20
Operating Buttons
Capacitive Touch Buttons

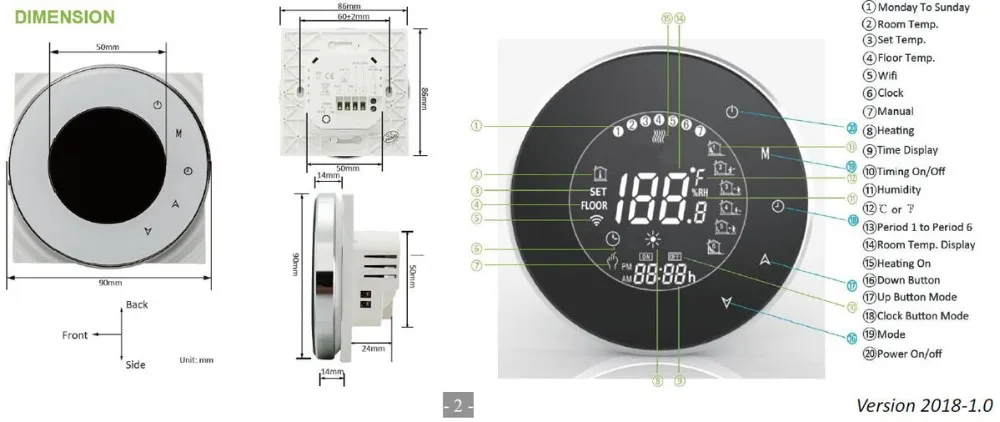

>>  Dimensions and Display

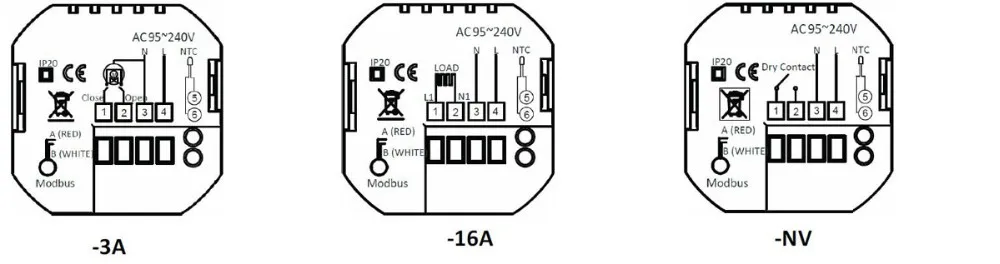

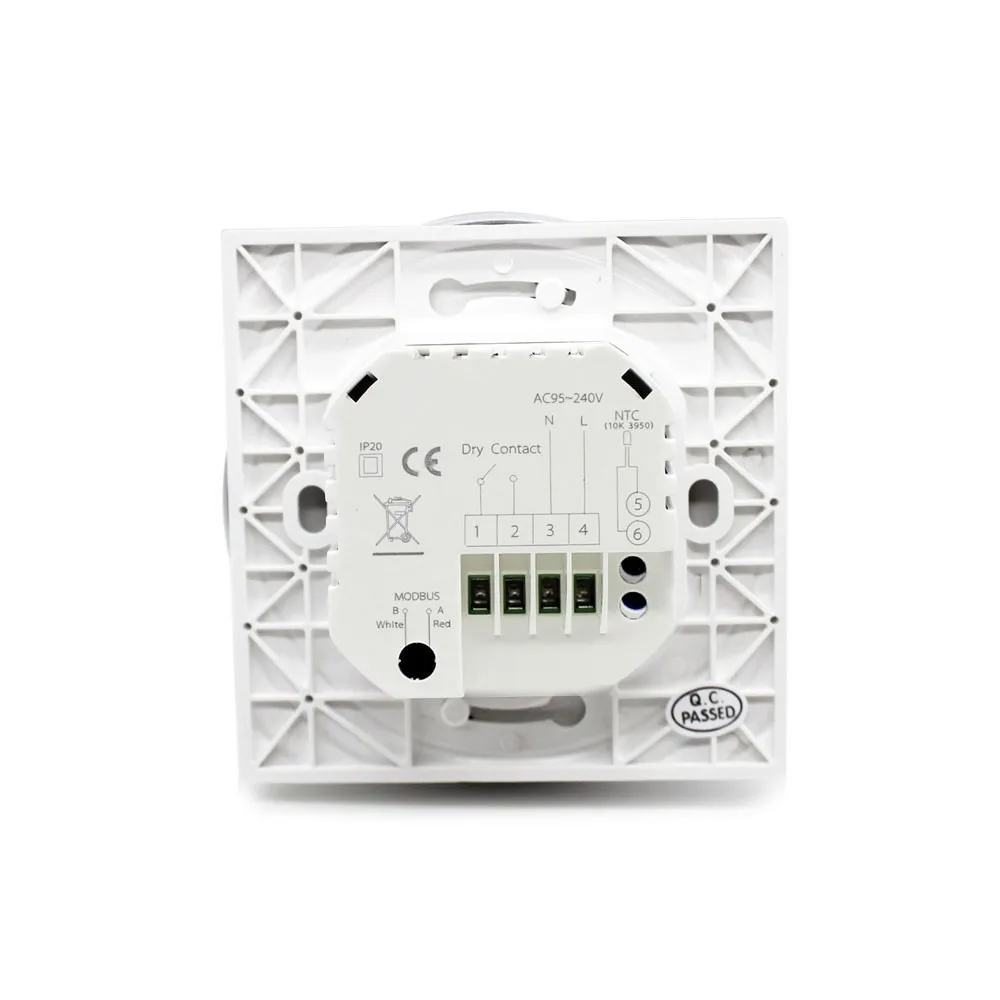

>> Installation

*  Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can't get the system to turn ON in 5 minutes, you'll know the power is OFF.
* Take off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
*  Fix the installation plate onto the electric junction box with screws packed in the box.
*  Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)

Detailed Images
Applications
