Unit Weight: 0.63KG/PC;
50 PCS/CTN;
Gross Weight: 31.5KG;
Paper box packing;
Box dimension: 46*35.5*56
Delivery time : Shipped in 15-20 days after payment
Categories
New product

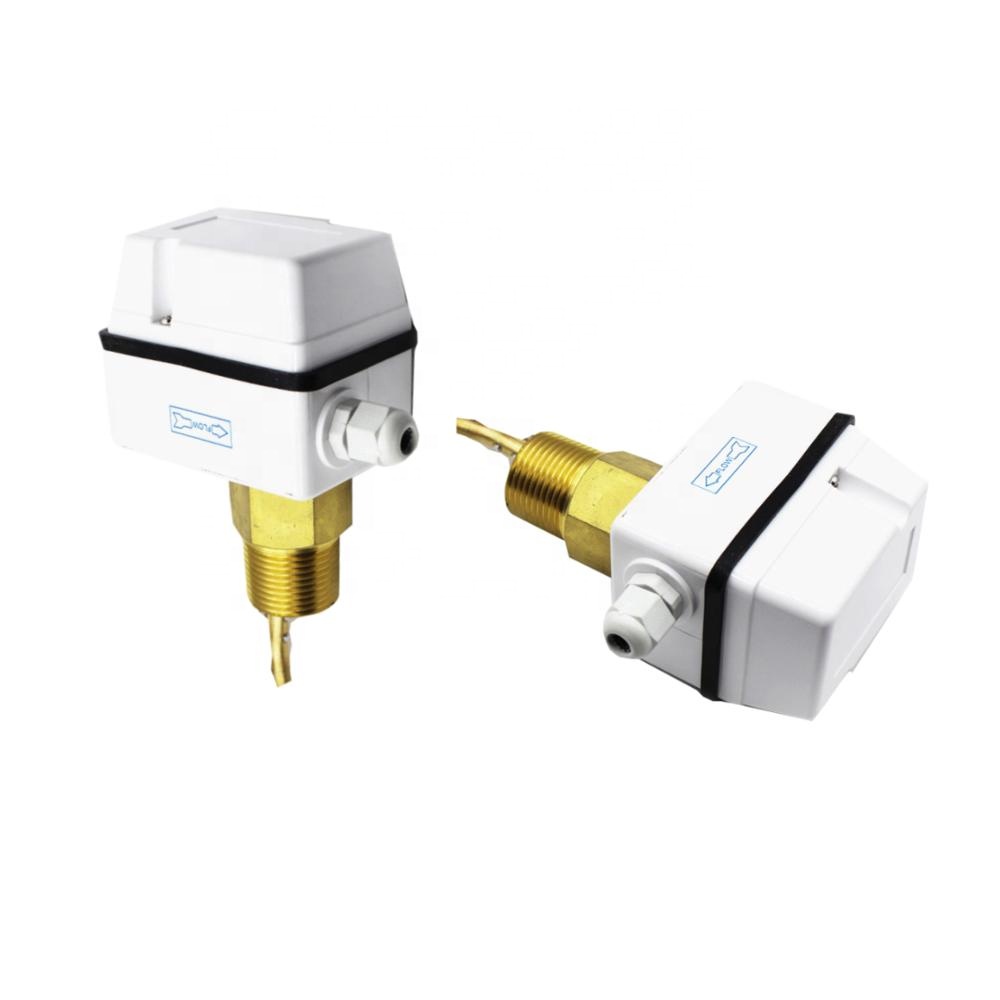

Water Flow Switches Stainless Steel/Bronze Material High Quality SPDT Electric Paddle Switch
Product ID : HTW-AFS
Product Tags :
Flow Switch
Product Attributes :
Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.
Product Description
Product Description
>> General
● Flow control of water and normal media
● Renovated SPDT micro switch ensures the reliable switch function
● 15(8A) 250VAC switch rating
● IP65, class I enclosure
>> Specification
Type of operation On/Off, single-stage, micro switch
Output SPDT 15(8A) 24/250Vac
Flow rates See flow rate table
Flow rate setting adjustment Internal srew
Sensing element Paddle
Liquid applications Hot, chilled, well, pool and sea water,
Brine or ethylene glycol
Parts material in contact with fluid Brass
Paddle material Stainless steel
Output SPDT 15(8A) 24/250Vac
Flow rates See flow rate table
Flow rate setting adjustment Internal srew
Sensing element Paddle
Liquid applications Hot, chilled, well, pool and sea water,
Brine or ethylene glycol
Parts material in contact with fluid Brass
Paddle material Stainless steel
Liquid temperature -20C-120C
Permissible ambient temperature -40C-85C
Permissible ambient humidity 10…90% RH, non-condensing
Cable entry M18
Housing Galvanized Steel Plate, ABS or PC cover
Protection IP65
Color White
Weight 1.0Kg
Permissible ambient temperature -40C-85C
Permissible ambient humidity 10…90% RH, non-condensing
Cable entry M18
Housing Galvanized Steel Plate, ABS or PC cover
Protection IP65
Color White
Weight 1.0Kg
>> Type & Data
>> Dimensions
Water Flow Switches Stainless Steel/Bronze Material High Quality SPDT Electric Paddle Switch
Factory Show
Packing & Shipping
Packing details
Shipping Method
We usually ship by
1.Sea shipping ：25-30 days
2. Air shipping ：5-7 days
3. Express delivery(DHL, UPS, FedEx, TNT etc.）：4-7days
