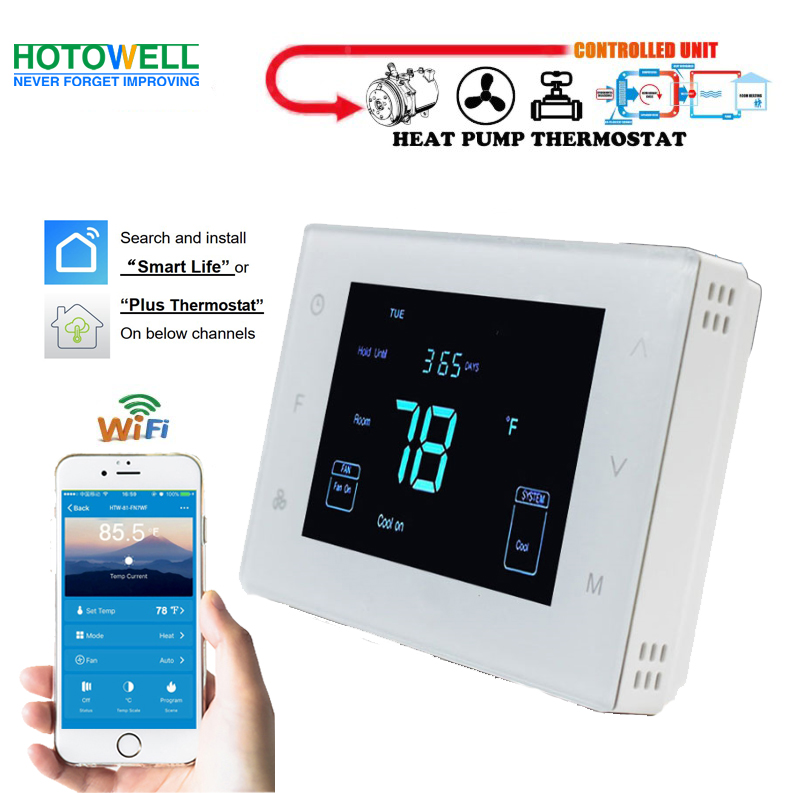

24vac Touch Screen Wifi Control Multi Stage Heat Pump Thermostat
24vac Touch Screen Wifi Control Multi Stage Heat Pump Thermostat 24vac Touch Screen Wifi Control Multi Stage Heat Pump Thermostat 24vac Touch Screen Wifi Control Multi Stage Heat Pump Thermostat 24vac Touch Screen Wifi Control Multi Stage Heat Pump Thermostat 24vac Touch Screen Wifi Control Multi Stage Heat Pump Thermostat

24vac Touch Screen Wifi Control Multi Stage Heat Pump Thermostat

Product ID : HTW-81-FN7-WF
Product Tags :
Product Attributes :

HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.

Product Description


Single&Multi-Stage Thermostat HTW-81-FN7-compressed.pdf

 >> General



HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.

>>Features



>>Specification

>>Power supply: AC24V, 50Hz

>>Power dissipation:2W Dimension: 136*94*26mm Output: <1A (Resistant load)

>>Temperature range: 41ºF -99ºF (5ºC -37ºC)

>>Display accuracy: ±0.5 ºC

>>Wiring: Terminals

 >>Installation dimension: 60mm / 82mm (hole pitch)

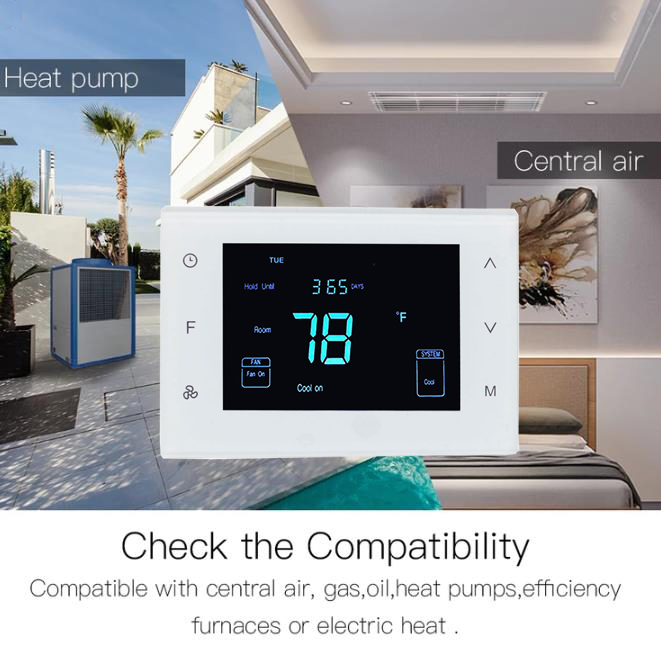

>>Application
 >>1H/1C (conventional)
 >>1H/2C (conventional)
 >>2H/2C (conventional)
 >>2H/1C (conventional)
 >>1H/1C (heat pump)
 >>2H/1C (heat pump)
 >>2H/2C (heat pump)
 >>3H/2C (heat pump)

>>Wiring Diagram

Wiring Diagram.jpg

>>Terminal Instruction



Terminal Instruction.jpg

>>Controlling Type Configuration



Controlling type.jpg
