0-10V Modulating Fan Coil 3 Fan Speed Thermostat Modbus Touch Screen Temperature Controller HTW-WF01-FC
Product ID : HTW-WF01-FC
Product Tags :
Fan coil thermostat
Product Attributes :

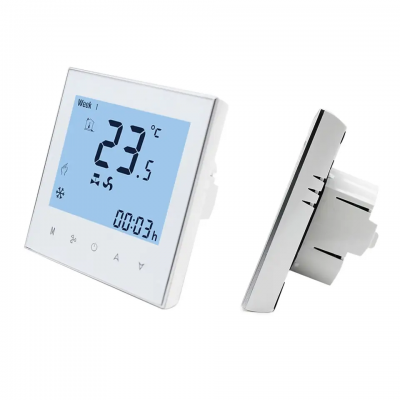

HTW-WF01 Modern Touch Screen Room Thermostats are designed to control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature as reaching the aim of comfort and saving energy. HTW-WF01 are microprocessor based thermostat with LCD display.
Product Description
0-10V Modulating Fan Coil 3 Fan Speed Thermostat Modbus Touch Screen Temperature Controller HTW-WF01-FC
>> General
HTW-WF01 Modern Touch Screen Room Thermostats are designed to control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature as reaching the aim of comfort and saving energy. HTW-WF01 are microprocessor based thermostat with LCD display.
>> Specifications
| Power Supply | 100~240V, 50 ~60Hz | Sensor | NTC |
| Storage Temp. | -5 ~ 45 °C | Temp. Range | 5 ~ 35°C |
| Power Consumption | < 1.5W | Timing Error | < 1% |
| Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
| Shell Material | PC (Fireproof) | Ambient Temp. | 0 ~ 45ºC,5 ~ 95%RH(Non condensing) |
| Current Load | Current Load:1A(Inductive), 2A(Resistance) | ||
