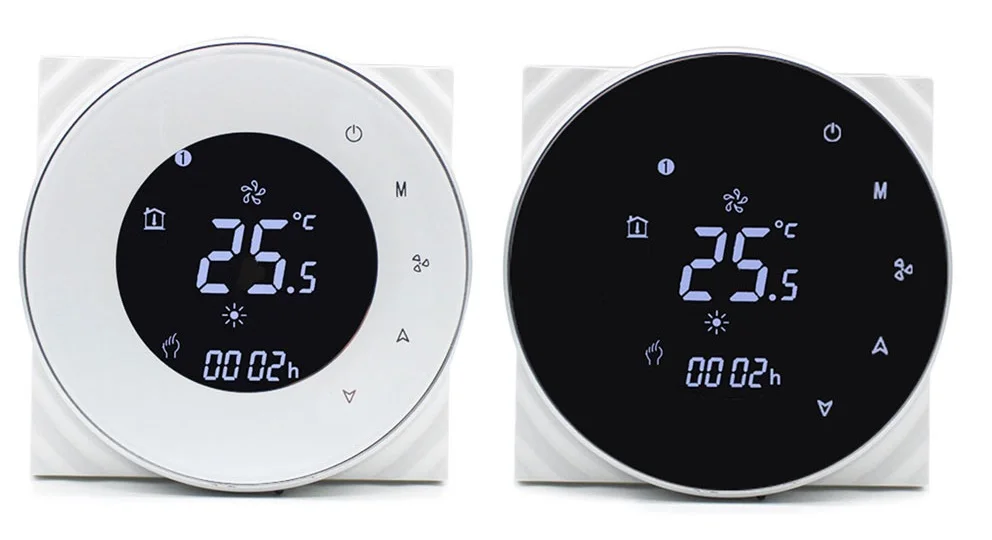

Wifi Smart Digital Fan Coil Thermostat With Programmable Timer
HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
>> General
HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
>> Feature
* 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew, German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean)
* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Easily Work with Amazon Echo, Google Home, Tmall Genie, IFTTT
* One APP match N pieces Thermostats
>> Ordering Guide
HTW-WF01- FC-** | -2 | 2 pipe(tube) system | -W | Wifi application | |
Smart Wifi Fan Coil Thermostat | -4 | 4 pipe(tube) system | -T | Clock | |
-M | Modulating output | -P | Programmable | ||
-N | Modbus RTU communication | -E | External Temperature Sensor | ||
-K | Key Card occupancy input | -24v | Power Supply with 24Vac | ||
e.g. HTW-WF01-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable | |||||

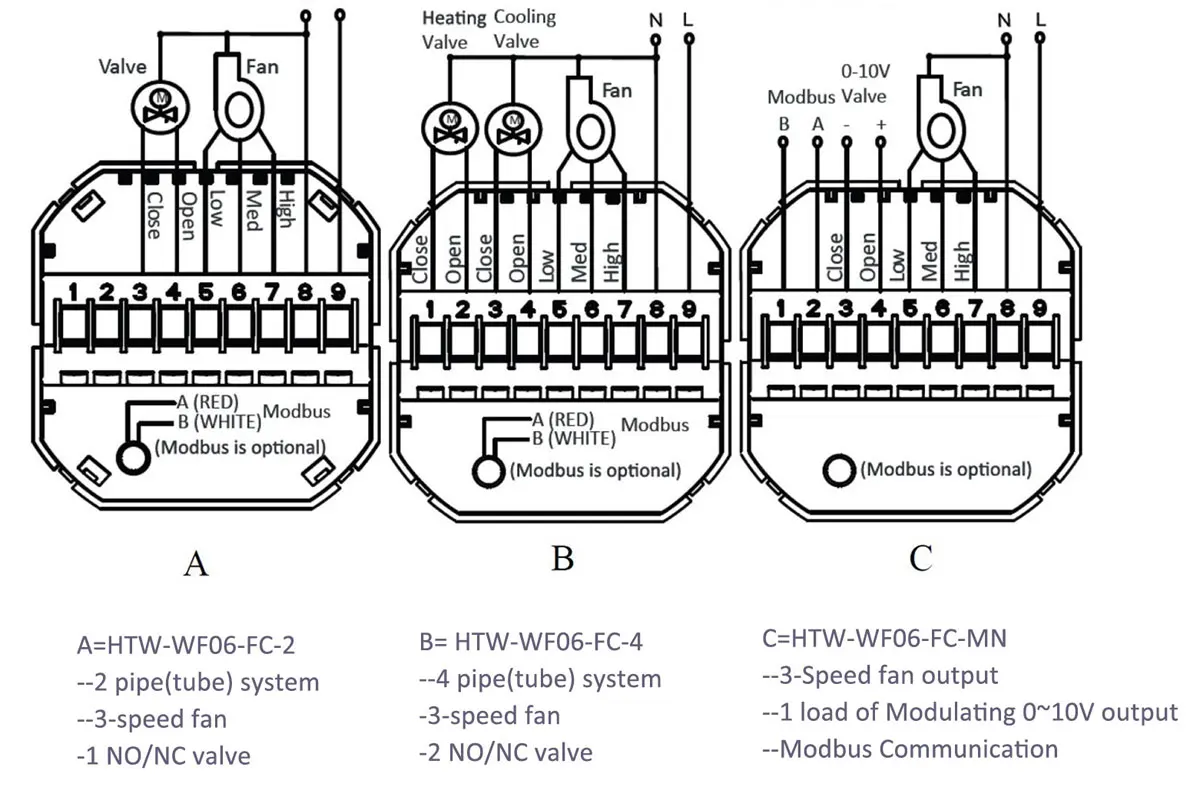

>> Tripical Wiring
>> Specification
Power Supply | 95~240Vac, 50/60Hz | Sensor | NTC3950, 10K |
Current Load | Fan Relay 5A(3A-inductive) | Temperature Accuracy | ±0.5°C or ±1℉ |
Valve Relay 3A(1A-inductive) | Set-Point Range | 5~35°C | |
Storage Temp. | -5 ~ 45 °C | Display Temp. Range | 5 ~ 99°C |
Power Consumption | < 1.5W | Timing Error | < 1% |
Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | ||
Protection Class | IP20 | Operating Buttons | Capacitive Touch Buttons Online Inquiry
