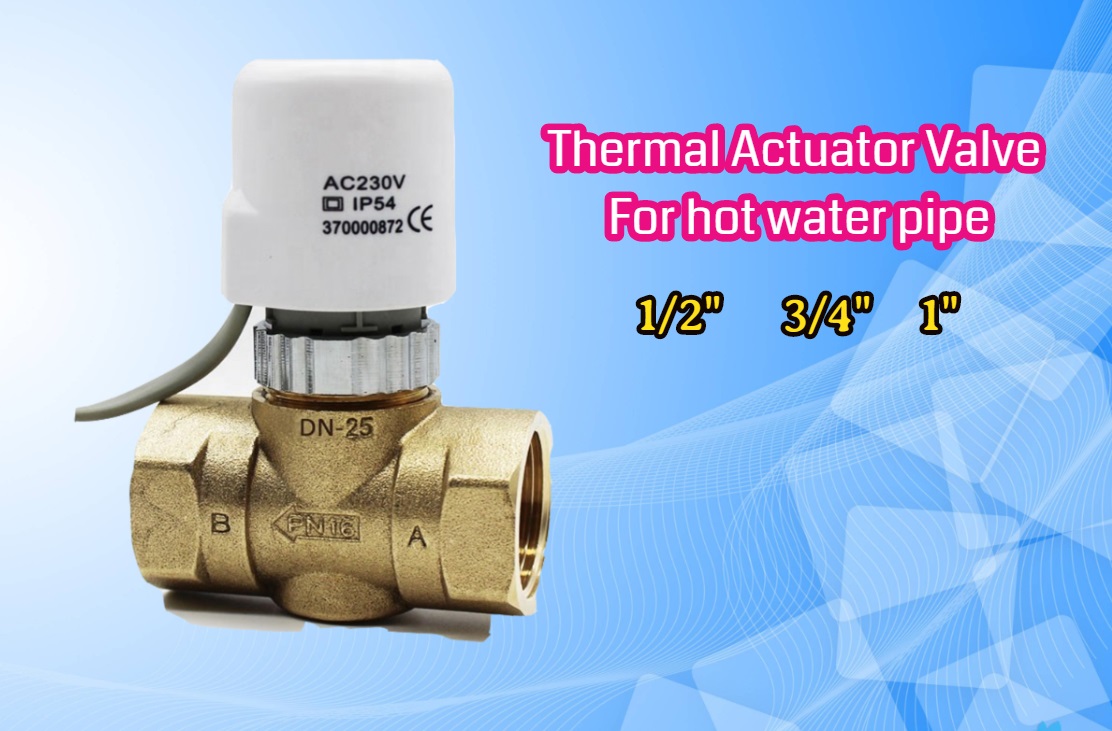

Electric thermal Actuator valve for underfloor heating system
HTW-TV01 series electric thermostatic valve is used to open or close the heating system pipeline to maintain a thermal room temperature.
It is installed on the hot water pipe, and the valve is controlled to open or close via the signal send from thermostat. The thermostat sends a signal to open the thermal valve to heat the room via heat exchange from the heating media, like heating water.
3 sizes available for option: 2 way 1/2''(DN15)
2 way 3/4''(DN20)
2 way 1''(DN25)
>> General
HTW-TV01 series electric thermostatic valve is used to open or close the heating system pipeline to maintain a thermal room temperature.
It is installed on the hot water pipe, and the valve is controlled to open or close via the signal send from thermostat. The thermostat sends a signal to open the thermal valve to heat the room via heat exchange from the heating media, like heating water.
3 sizes available for option: 2 way 1/2'’(DN15)
2 way 3/4'’(DN20)
2 way 1'’(DN25)
>> Specification
Power supply voltage:24/110V/220V/230V, 50/60Hz Optional Power consumption:1W
Protection rating:IP54
Connection Screw:M30* 1. 5
Working Temp.:5~60℃
Stroke:3mm
Opening Time:3~5min(25℃) Working Thrust:110N
>> Ordering Guide

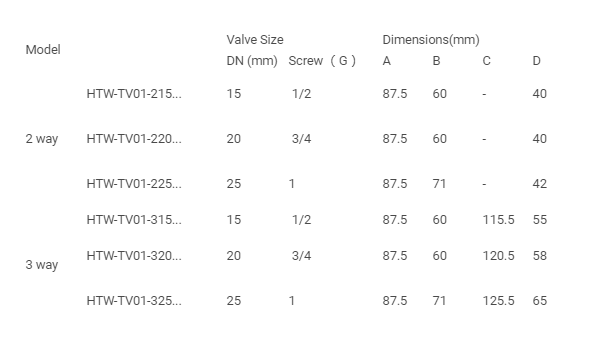

>>Dimensions
>> FAQ
