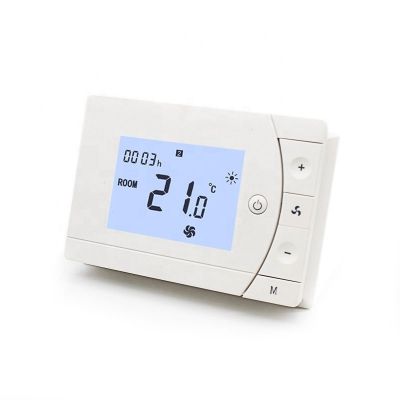

HTW-EW002 Noise-Free Split Thermostat Keycard Light Control Display Part Relay Module
Product ID : HTW-EW002
Product Attributes :
HTW-EW002 is a Noise-Free room climate controller application for water-installation with fan coils/EC fan
/Modulating valve. It is designed as a RTU Modbus communicated device to operate the fan coil unit / EC Fan / Modulating Valve of a zone and includes a set of functions for lighting control, zone occupancy and window
position based climate control. A high level of comfort and appropriate climate control to ensure maximum energy savings are thus provided.
These two parts are communicated via 3-wire with carrier transmission technology connections, up to 50m non- loss communication:
-GND
-12V
-DATA
position based climate control. A high level of comfort and appropriate climate control to ensure maximum energy savings are thus provided.
These two parts are communicated via 3-wire with carrier transmission technology connections, up to 50m non- loss communication:
-GND
-12V
-DATA
Product Description
HTW-EW002 Noise-Free Split Thermostat Keycard Light Control Display Part Relay Module
>> General
HTW-EW002 is a Noise-Free room climate controller application for water-installation with fan coils/EC fan
/Modulating valve. It is designed as a RTU Modbus communicated device to operate the fan coil unit / EC Fan / Modulating Valve of a zone and includes a set of functions for lighting control, zone occupancy and window
position based climate control. A high level of comfort and appropriate climate control to ensure maximum energy savings are thus provided.
These two parts are communicated via 3-wire with carrier transmission technology connections, up to 50m non- loss communication:
-GND
-12V
-DATA
/Modulating valve. It is designed as a RTU Modbus communicated device to operate the fan coil unit / EC Fan / Modulating Valve of a zone and includes a set of functions for lighting control, zone occupancy and window
position based climate control. A high level of comfort and appropriate climate control to ensure maximum energy savings are thus provided.
These two parts are communicated via 3-wire with carrier transmission technology connections, up to 50m non- loss communication:
-GND
-12V
-DATA
>> Features
| * AC controlling solutions | * Configurable for 2 pipe / 4 pipe systems |
| * Black-Negative/White-LCD screen Optional | * Black-Negative/White-LCD screen Optional |
| * Touch Key Pads:+T/-T/Setting/Fan speed/Model/On-Off | * Configurable max/min/economy temperature set points |
| * Completely flat tempered glass screen-protect cover | * Configurable anti-humidity requency:10/30,5/30,5/60 |
| * Keycard/Window Card switch contact | * Automatic device startup after loss of power |
| * ON/Off 3 speeds / 1 speed configurable | * Configurable NO/NC valve outputs |
| * EC fan Control with starting/max. voltage configurable | * Delayed switching to Economy when card is removed |
| * Modulating Valve Output 0-10V / 2-10V configurable | * Switching Differential Dead Band configurable |
>> Wiring Diagram
