Smart Wifi Fan Coil Room Thermostat Weekly Programmable Round Shape HTW-WF06-FC
Smart Wifi Fan Coil Room Thermostat Weekly Programmable Round Shape HTW-WF06-FC Smart Wifi Fan Coil Room Thermostat Weekly Programmable Round Shape HTW-WF06-FC Smart Wifi Fan Coil Room Thermostat Weekly Programmable Round Shape HTW-WF06-FC Smart Wifi Fan Coil Room Thermostat Weekly Programmable Round Shape HTW-WF06-FC Smart Wifi Fan Coil Room Thermostat Weekly Programmable Round Shape HTW-WF06-FC

Smart Wifi Fan Coil Room Thermostat Weekly Programmable Round Shape HTW-WF06-FC

Product ID : HTW-WF06-FC
Product Tags : Fan coil thermostat
Product Attributes :

HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Residential buildings, Schools, Hotels,Hospitals, Offices and etc. to main an ideal room temperature purpose.
Could be made as Modbus or Wifi connection.

Product Description
Product Description



Smart Wifi Fan Coil Room Thermostat Weekly Programmable Round Shape HTW-WF06-FC

>> General

HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Residential buildings, Schools, Hotels,Hospitals, Offices and etc. to main an ideal room temperature purpose.
Could be made as Modbus or Wifi connection.

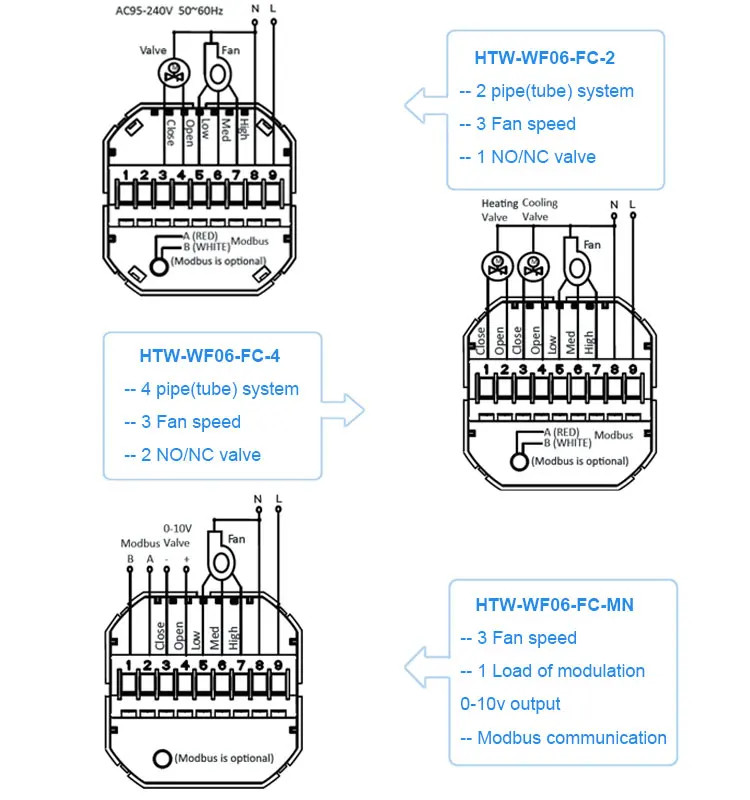

>> Ordering Guide



>> Ordering Guide
Specification
Power Supply
95~240Vac, 50/60Hz
Sensor
NTC3950, 10K
Current Load
Fan Relay 5A(3A-inductive) Temperature Accuracy
Temperature Accuracy
±0.5°C or ±1℉
Valve Relay 3A(1A-inductive)
Set-Point Range
5~35°C
Storage Temp.
-5 ~ 45 °C
Display Temp. Range
5 ~ 99°C
Power Consumption
< 1.5W
Timing Error
< 1%
Housing Material
PC +ABS ( Fireproof)
Installation Box
EU or Standard Electric Box
Wires on Terminals
Wire 2 x 1.5 mm² or 1 x 2.5 mm²
Installation

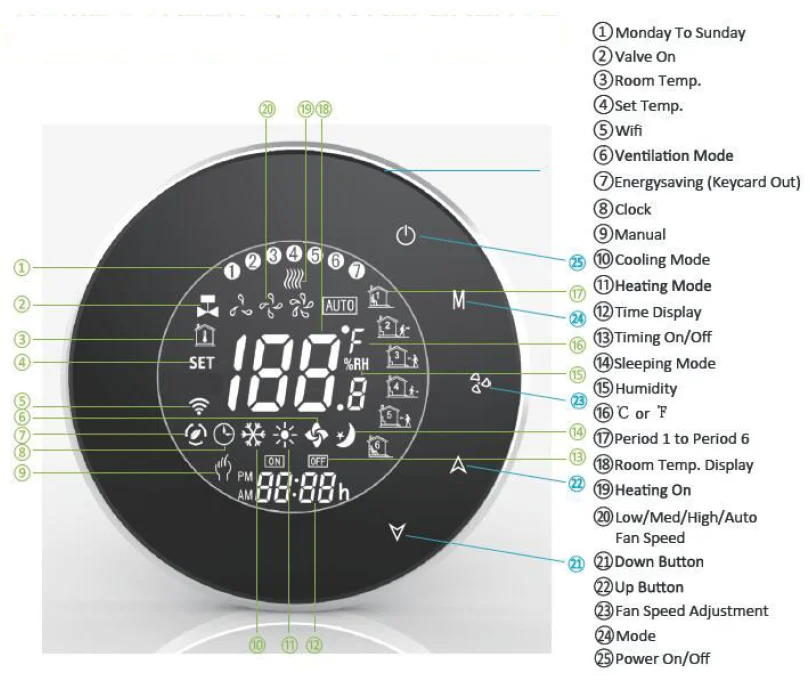

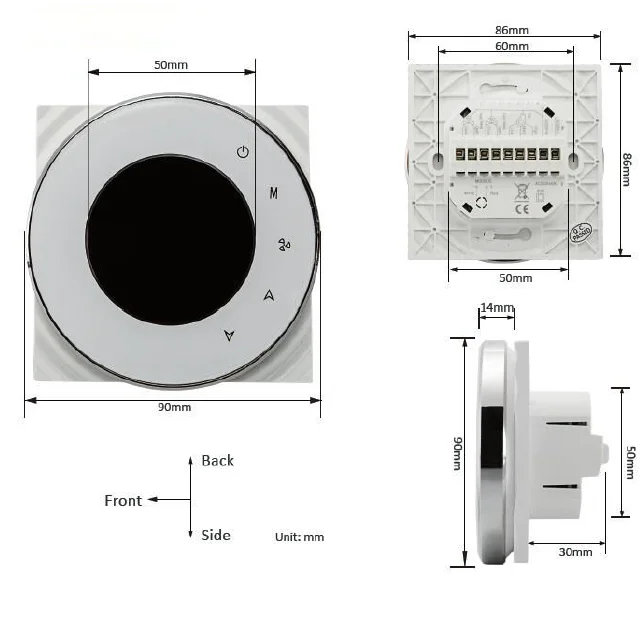

Dimensions and Display
Packing & Delivery
Company Profile
Hotowell is a high-tech company with rich experiences in product design and manufacturing, knowledge about global HVAC standards,and highly-trained team. Our objective is to produce and design user-friendly HVAC products on the highest technical level forimproving people's experience in temperature/environment comfort.
Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc.covering industrial, commercial and residential temperature controls.

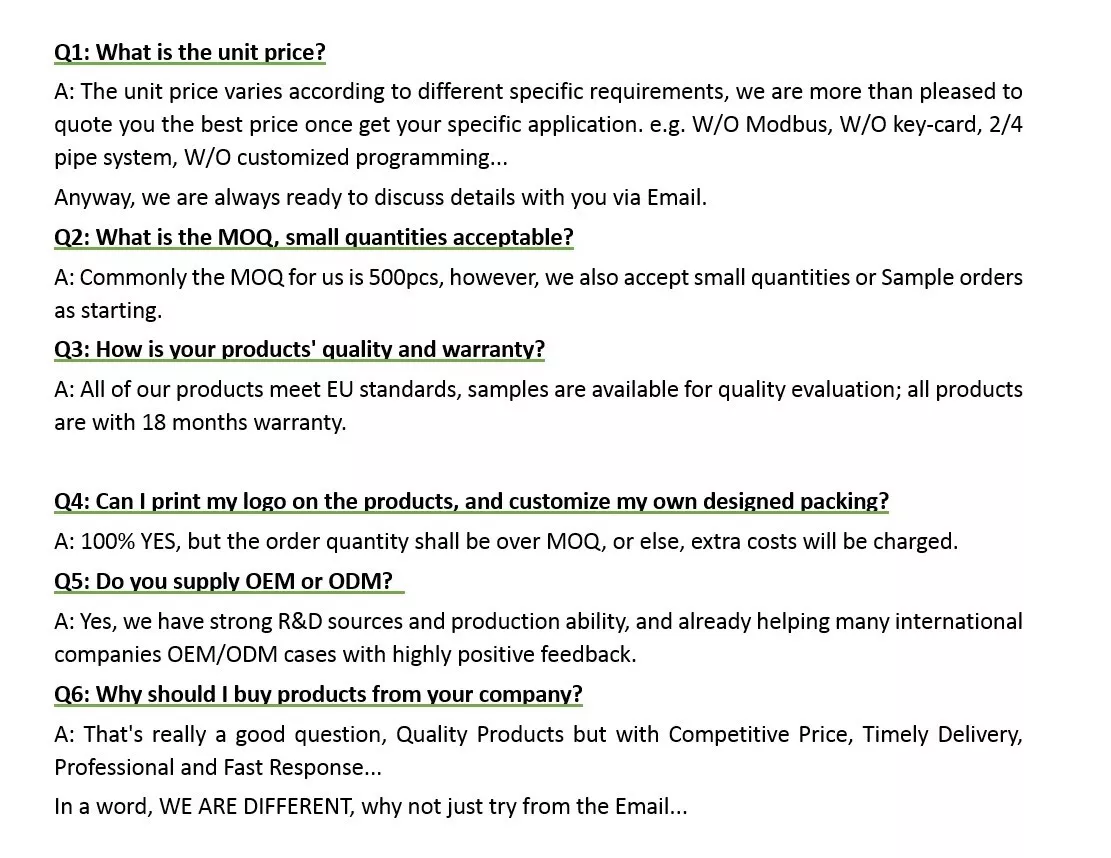

FAQ
