HVAC Timer TRV radiator thermostatic valve Actuator programmable radiator thermostat
HVAC Timer TRV radiator thermostatic valve Actuator programmable radiator thermostat HVAC Timer TRV radiator thermostatic valve Actuator programmable radiator thermostat HVAC Timer TRV radiator thermostatic valve Actuator programmable radiator thermostat HVAC Timer TRV radiator thermostatic valve Actuator programmable radiator thermostat HVAC Timer TRV radiator thermostatic valve Actuator programmable radiator thermostat

HVAC Timer TRV radiator thermostatic valve Actuator programmable radiator thermostat

Product ID : HTW-21RT
Product Attributes :

This actuator will fine turning for valve status of opened ,according to room temperature and setting temperature ,to meet better status of power saving for put off the working life of battery.

Product Description


HTW-21RT Radiator Actuator Thermostat.pdf

 >> General

This actuator will fine turning for valve status of opened ,according to room temperature and setting temperature ,to meet better status of power saving for put off the working life of battery

Power: 3*2 AA* 1.5V alkaline batteries                                                  Maximum current:90mA

Working temperature::0~70°C/32~158°F                                           Display accuracy::0.5℃

Range of temperature adjustment::5~70°C/41~158°F                       Probe sensor::NTC(10k)1%

Range of temperature display::0~70°C/32~158°F                             Thread size:M30*1.5

Insulating condition: Normal environment                                              Size(mm):66*52*82+20mm

Running program: Set per 1 week as a cycle                                        Maximum route:4.5mm

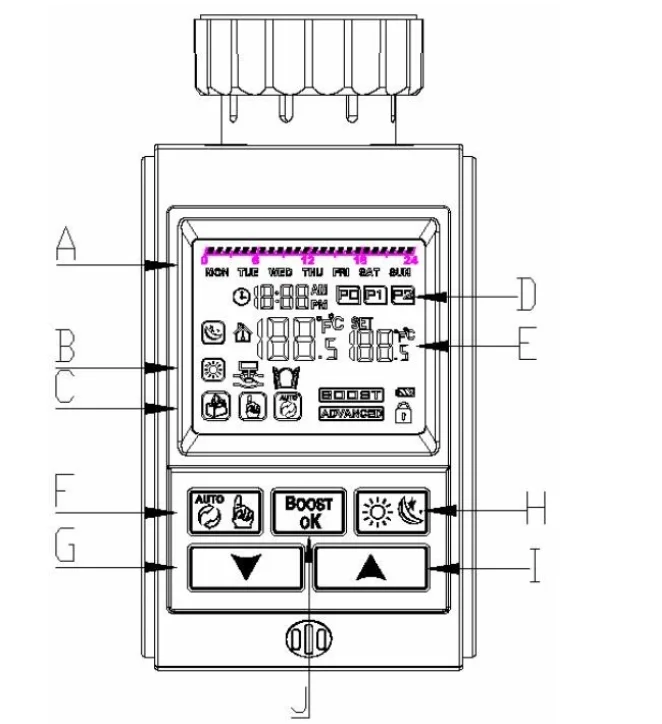

 >> Display and buttons



 >> FAQ
