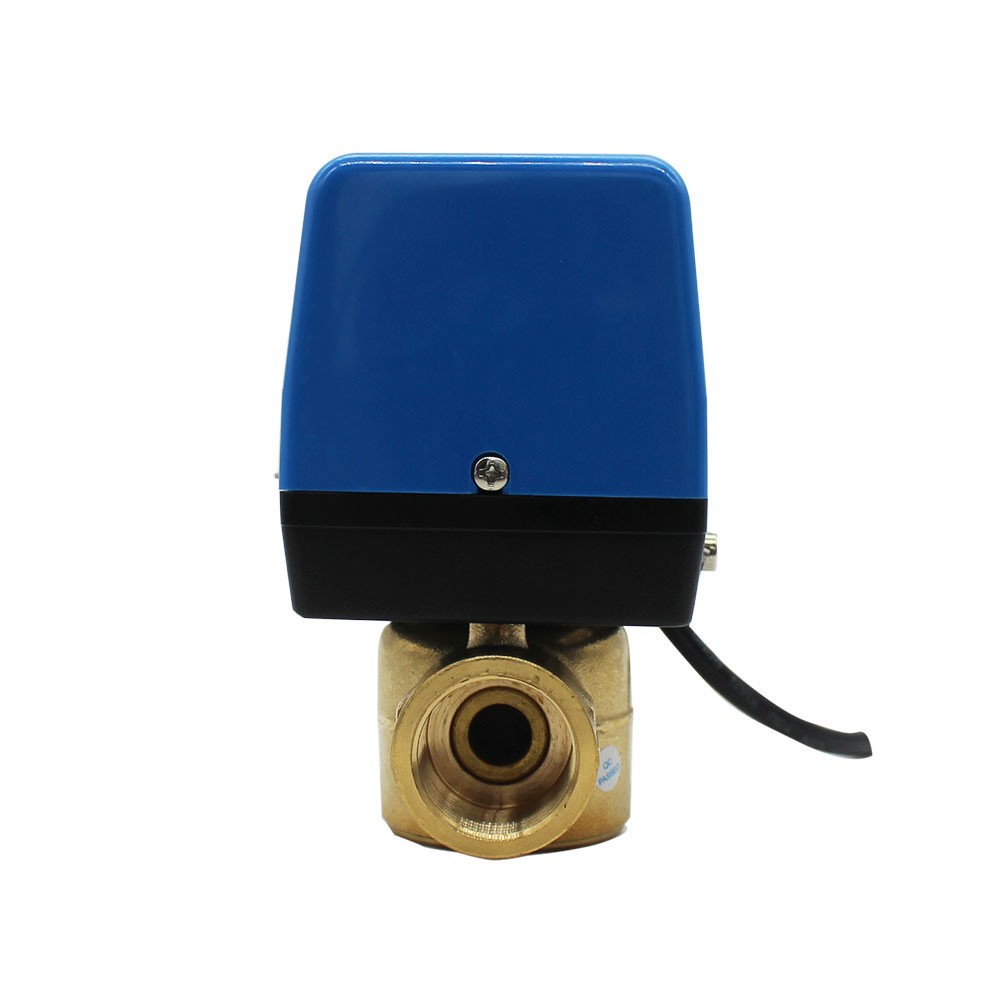

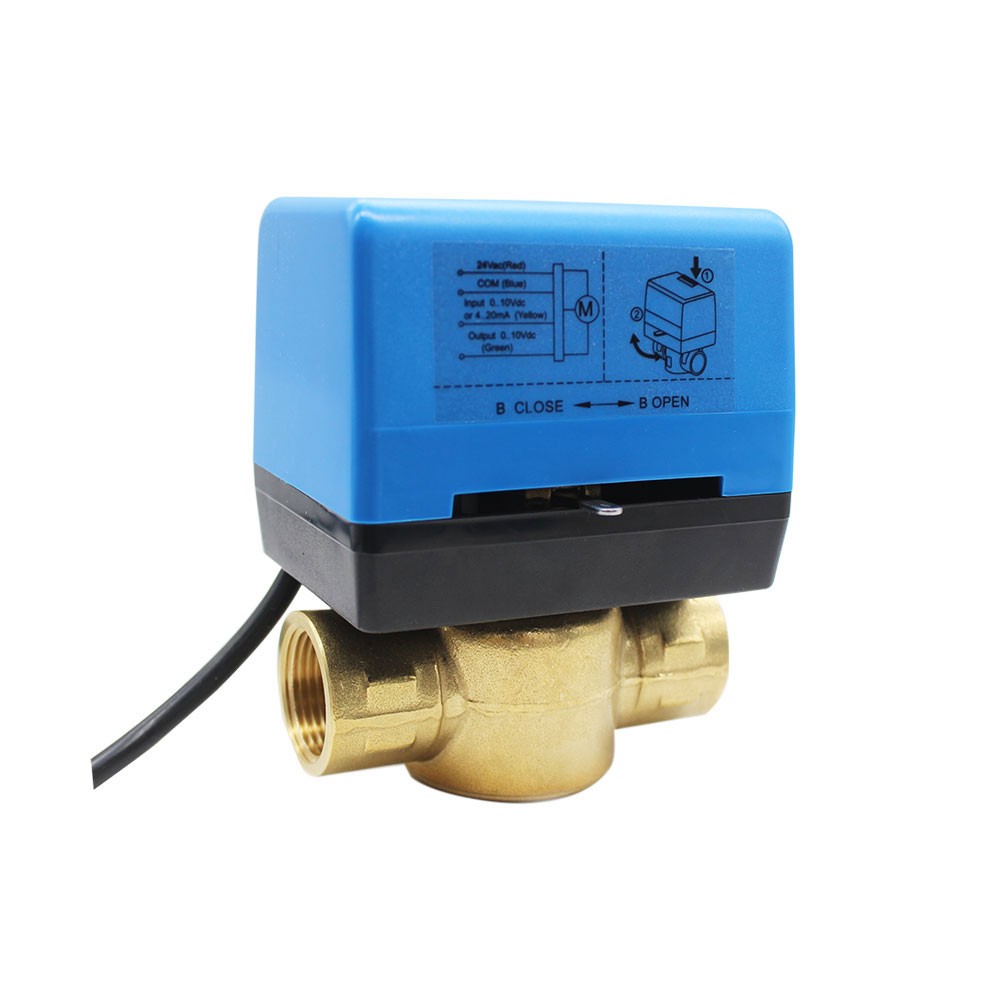

2 Way/ 3 Way 0 10V Motorized Modulating Control Valve For Fan Coil System
2 Way/ 3 Way 0 10V Motorized Modulating Control Valve For Fan Coil System 2 Way/ 3 Way 0 10V Motorized Modulating Control Valve For Fan Coil System 2 Way/ 3 Way 0 10V Motorized Modulating Control Valve For Fan Coil System 2 Way/ 3 Way 0 10V Motorized Modulating Control Valve For Fan Coil System 2 Way/ 3 Way 0 10V Motorized Modulating Control Valve For Fan Coil System

2 Way/ 3 Way 0 10V Motorized Modulating Control Valve For Fan Coil System

Product ID : HTW-MV13
Product Tags :
Product Attributes :

HTW-MV13 series Motorized Modulating Control Valve are mainly used in central air- conditioning cool/heat water system. It can
accurately control the flow of cool/heat medium according to the actual requirement, and will not result in sudden change of
temperature and to control the room temperature accurately. It provides two types: 2-way and 3-way with sizes: 1/2", 3/4", 1" and
1.1/4'' optional.

Product Description
Product Description
2 Way/ 3 Way 0 10V Motorized Modulating Control Valve For Fan Coil System

>> General

HTW-MV13 series Motorized Modulating Control Valve are mainly used in central air- conditioning cool/heat water system. It can
accurately control the flow of cool/heat medium according to the actual requirement, and will not result in sudden change of
temperature and to control the room temperature accurately. It provides two types: 2-way and 3-way with sizes: 1/2", 3/4", 1" and
1.1/4'' optional.

Screw Thread default provided with BSP(G),
Specific NPSC(N), SWEAT(S), INVERTED FLARE(I), etc. can be customized.

>> Technical parameters


• High precision and sensitivity of temperature control;
• 24Vac, 50/60Hz;
• Timing protection device (for 24V working power supply, it can be assembled for optional), to ensure motor reliable and durable life;
• Built-in electronic card (24V working power supply only) can receive 0~10V (input impedance: 200KΩ) or 4~20mA DC (input impedance: 500Ω) input control signal, and provide proportional control, and 0~10Vdc (1mA) feedback signal.
• The valve actuator and valve body is used tight lock connection. The actuator can be installed after the installation of valve body. It has flexible and convenient assembly.


>> Specifications

>> Dimensions

Type
Dimensions(mm)
C
D
E
F
G
DN15 2-way
115
73
67
80
90
DN15 3-way
125
73
67
80
90
DN20 2-way
115
73
67
89
90
DN20 3-way
127
73
67
89
90
DN25 2-way
117
73
67
93
90
DN25 3-way
139
73
67
93
90
DN32 2-way
131
73
67
105
90
DN32 3-way
146
73
67
105
