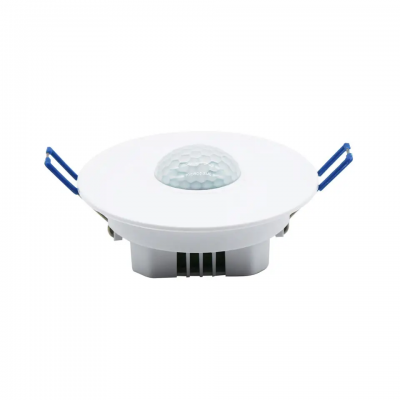

AC 110V/240V Dry Contact Human Body Motion Sensor Htw-L727 LED Infrared Detector
HTW-L727 is a ceiling-mounted passive infrared detector with high stability. It based on infrared automatic control technology, when people enter the induces scope, the special-purpose sensor surveys the mutative infrared spectrum of human body, then the switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.
AC 110V/240V Dry Contact Human Body Motion Sensor HTW-L727 LED Infrared Detector
>> General
HTW-L727 is a ceiling-mounted passive infrared detector with high stability. It based on infrared automatic control technology, when people enter the induces scope, the special-purpose sensor surveys the mutative infrared spectrum of human body, then the switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.
>> Features
* Bipolarity design: Similar with ordinary wall switch (three connections), load capacity upto1000W.
* Completelyautomatic induction: The switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.
* High-performanced switch relay: Connection load strength, load capacity upto1000W, switches upto 100,000 times.
* Delay time adjustable:5 - 350S
* Low power consumption:Switch own power loss<0.016W/h (year consumes electricity< 0.14 kwh).
* Anti-radar function: Lightning protection components built inside.
>> Electrical Parameter
|
Induction way
|
Passive | Working voltage | AC110V or AC240V(50Hz/60Hz) Or 24Vac or Others Optiona |
| Induction principle | Human body Infrared | Self power consumption | <0.016W/h |
| Induction distance | 7 meters | Loading capacity | Inductive 500W Resistance 1000W |
| Induction angle | 140 degrees coning angles | Loading Equipment | Various |
| Lux range | 5LUX-500LUX (adjustable) | Ambient temperature | -20ºC~50ºC |
