Smart Thermostat Underfloor Heating Wifi Thermostat Gas Heating Time Schedule Function

Product ID : HTW-HT09B-3ANV3

Product Tags : Room thermostat smart thermostat Heating Thermostat

Product Attributes :

HTW-HT09B series thermostat can be used in Electric Underfloor Heating, Water/Gas Boiler Heating, or Water Heating systems.

Product Description

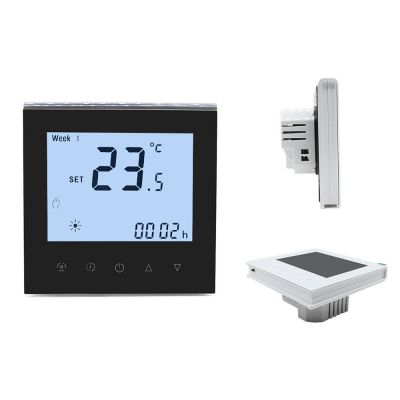

Smart Thermostat Underfloor Heating Wifi Thermostat Gas Heating Time Schedule Function

>> General

HTW-HT09B-3ANV3

HTW-HT09B series thermostat is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices, etc. to maintain an ideal room temperature. It can be used in Electric Underfloor Heating, Water/Gas Boiler Heating, or Water Heating systems.

>> Ordering Guide

HTW-HT09P-**	3ANV	2 x 3A load, NC+NO+COM output terminals and Non-Voltage Dry Contact to Boiler
	16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals+External Sensor
	1/3	1 stands for standalone type, 3 stands for Wi-Fi type
eg. HTW-HT09P-3ANV3 refers to application: Water Heating or Water/Gas Boiler Heating, 3A, Wi-Fi type

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5 ~ 35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
