HVAC Thermostat Water Floor Heating Thermostat Boiler Heating System Setpoint Limitation Function

Product ID : HTW-HT03P-3ANV1

Product Tags : Heating Thermostat Room thermostat

Product Attributes :

HTW-HT03P series thermostat can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

Product Description

HVAC Thermostat Water Floor Heating Thermostat Boiler Heating System Setpoint Limitation Function

>> General

HTW-HT03P-3ANV1

HTW-HT03P series thermostat is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices, etc. to maintain an ideal room temperature.

It can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

>> Ordering Guide

HTW-HT03P-**	Code	Application
	-3ANV	2x3A load, NC+NO+COM output terminals and Non-Voltage Dry Contact to Boiler
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals+External Sensor

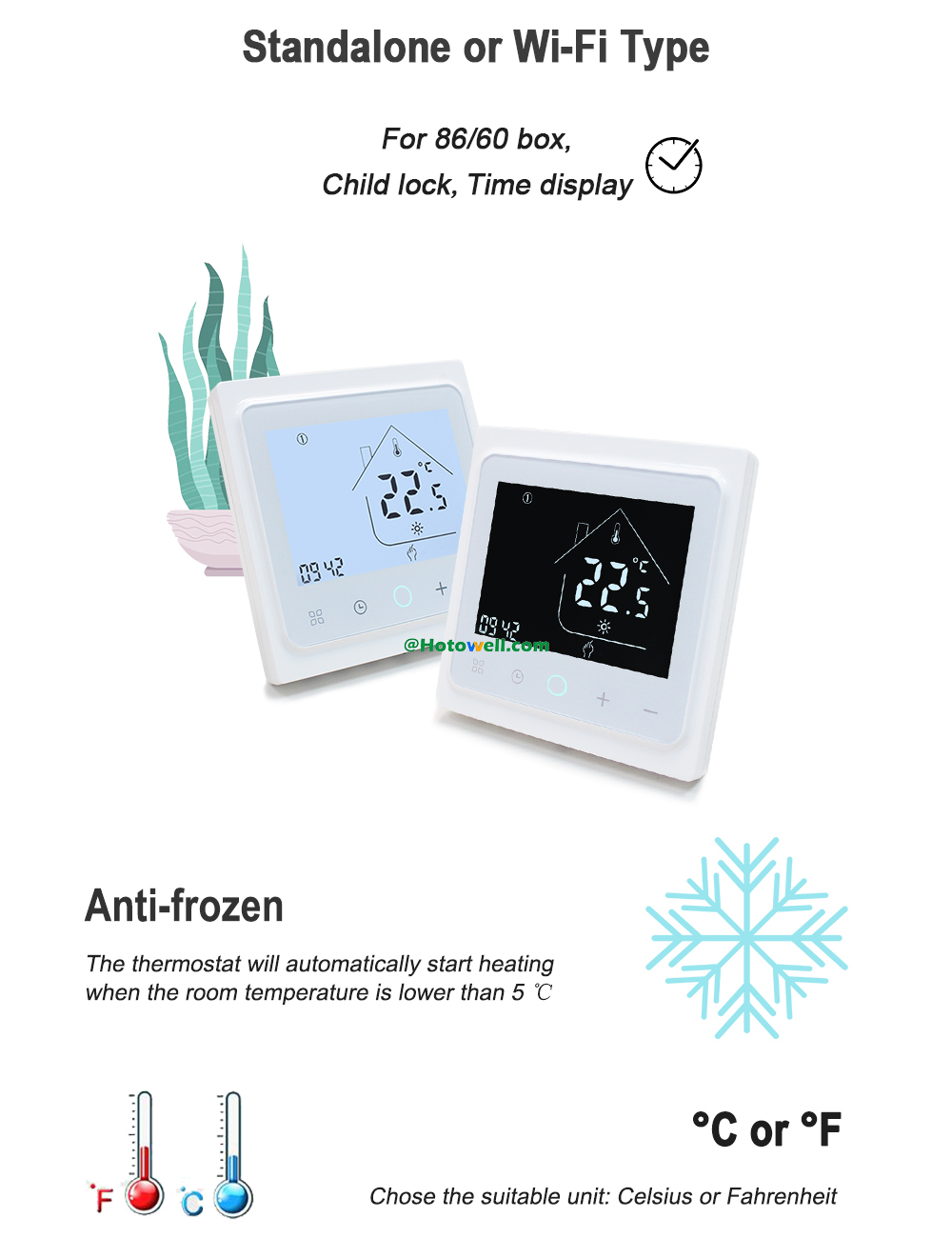

	-1/3	1: Standalone type; 3: WiFi type
e.g. HTW-HT03P-16A3: Electric underfloor heating, wifi function...

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5 ~ 35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
