Hotowell WF05 Wifi Modbus Smart Heating Thermostat Temperature Controller
Product ID : HTW-WF05
Product Attributes :
HTW-WF05 is suitable for electric heating, water heating, wall-hung boilers and boiler-temperature control systems.It can be used in smart controlling hourses, shopping malls, and industrial places.
Product Description
Product Description
Hotowell WF05 Wifi Modbus Smart Heating Thermostat Temperature Controller
>> General
HTW-WF05 is suitable for electric heating, water heating, wall-hung boilers and boiler-temperature control systems.It can be used in smart controlling hourses, shopping malls, and industrial places.

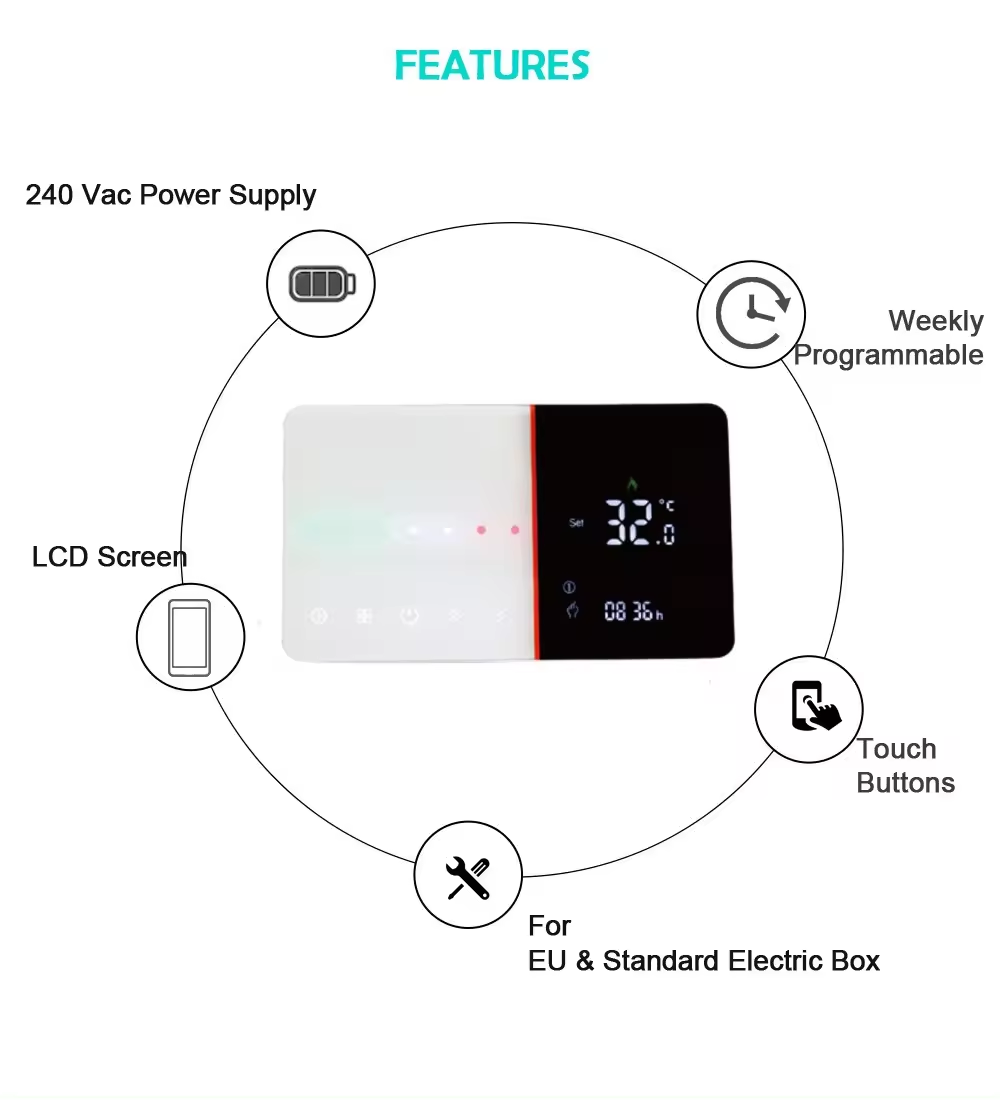

>> Features
>> Technical Parameter
| HTW-WF05-** | |
| Power Supply | 95~240Vac, 50/60Hz |
| Current Load | 5 A(water heating/ water boiler/gas boiler) 16 A(electric heating) |
| Storage Temp. | -5 ~ 45 °C |
| Power Consumption | < 1.5W |
| Housing Material | PC +ABS ( Fireproof) |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 |
| Protection Class | IP20 |
| Sensor | NTC3950, 10K |
| Temperature Accuracy | ±0.5°C or ±1℉ |
| Set-Point Range | 5~35°C |
| Display Temp. Range | 5 ~ 99°C |
| Timing Error | < 1% |
|
Installation Box
|
European 60mm Round Box |
| Operating Buttons | Capacitive Touch Buttons |

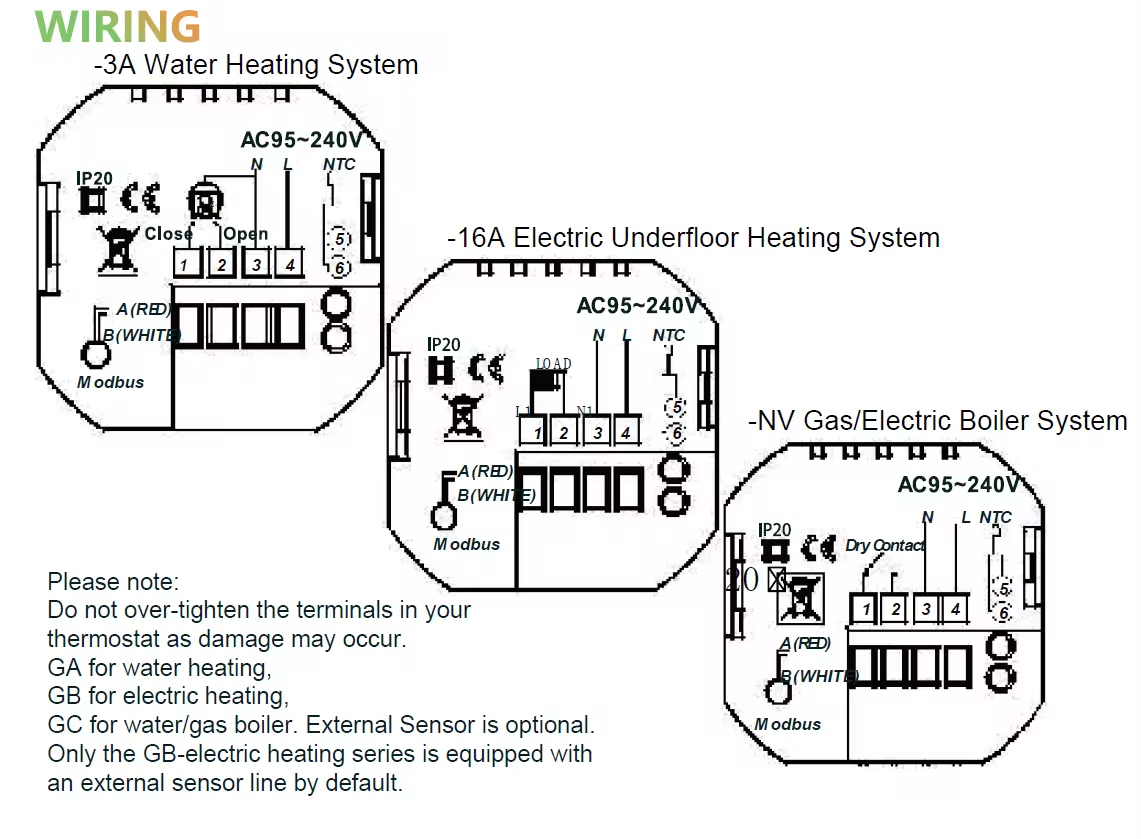

>>Typical wiring disgram
Details

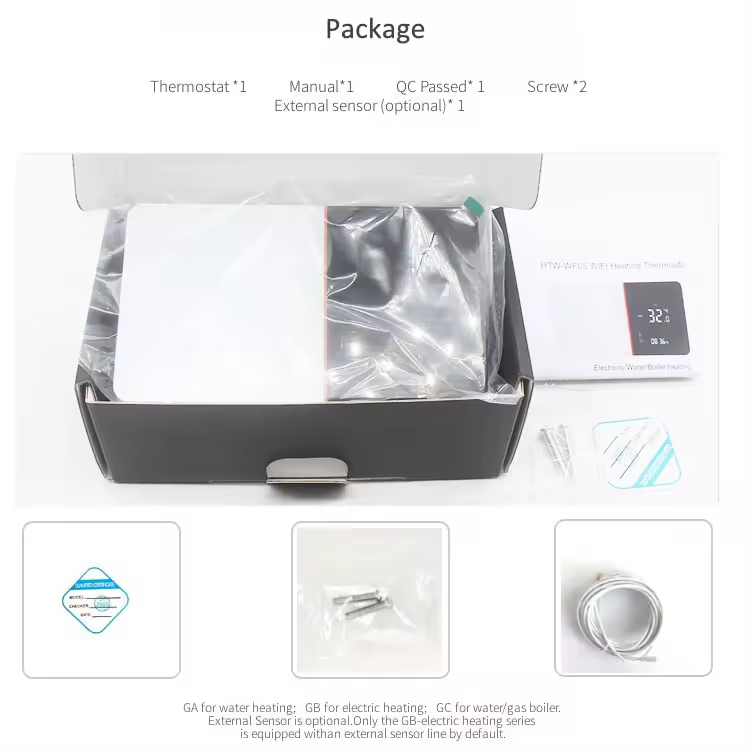

Packing & Delivery
