Hotowell MT08 Colorful Touch Screen Weekly Programmable Wifi Heat Pump Thermostat
HTW-MT08 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, the device is of high reliability and practicability, and it can support up to 3H/2C system. This model is Max. 2H2C for conventional System or Max. 3H/2C for Heap Pump System.
Product Description
Hotowell MT08 Colorful Touch Screen Weekly Programmable Wifi Heat Pump Thermostat
>> General
HTW-MT08 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, the device is of high reliability and practicability, and it can support up to 3H/2C system. This model is Max. 2H2C for conventional System or Max. 3H/2C for Heap Pump System.

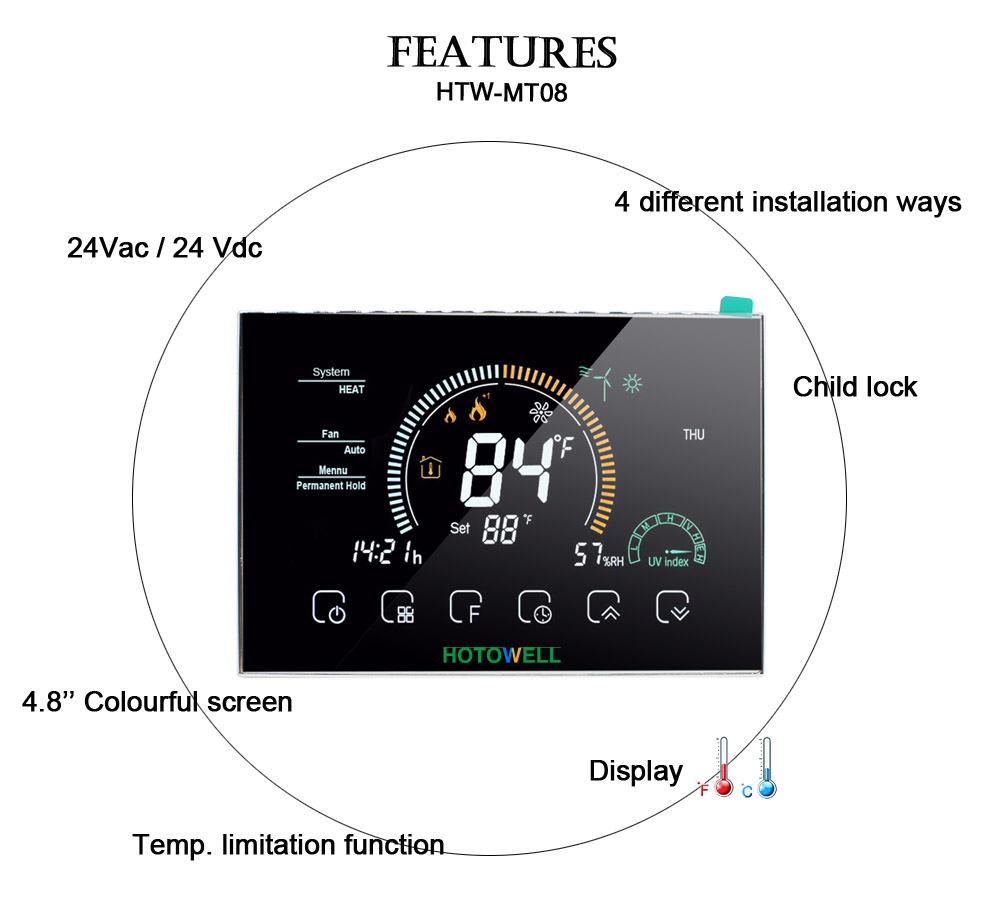

>> Features
>> Technical Parameter
| HTW-MT08 | ||||
|
Power supply
|
24VAC+10%
|
|||
|
Current load
|
1A(Inductive) 3A(Resistance)
|
|||
|
Max load
|
0.5A
|
|||
|
Accuracy
|
0.5°C or 1°F
|
|||
|
Housing Material
|
PC+ABS( Fireproof)
|
|||
|
Sensor
|
NTC3950 10K
|
|||
|
Setpoint range (heat/cool)
|
41-95°F(5~35°C)
|
|||
|
Consumption
|
<1.5W
|
|||
|
Ambient Humidity
|
5-95%
|
|||
|
Protection Class
|
IP20
|
|||

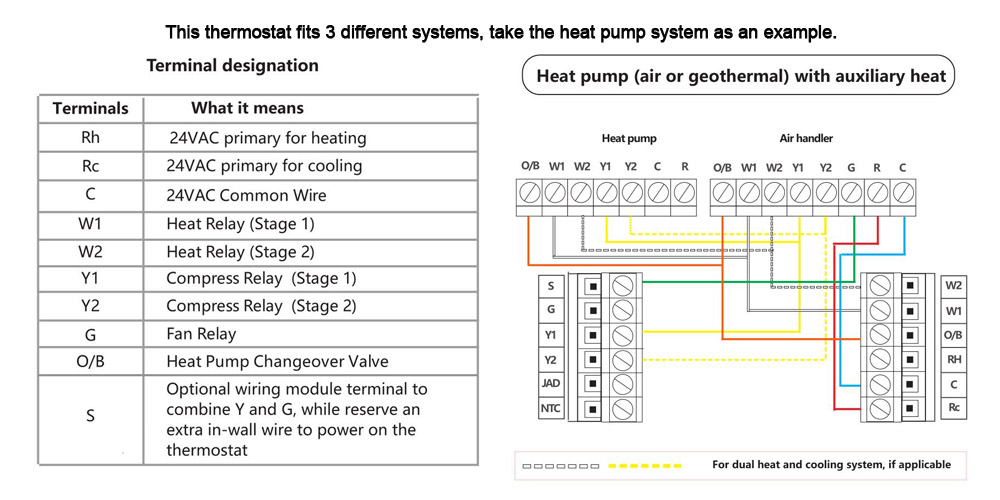

>>Typical wiring disgram
Details

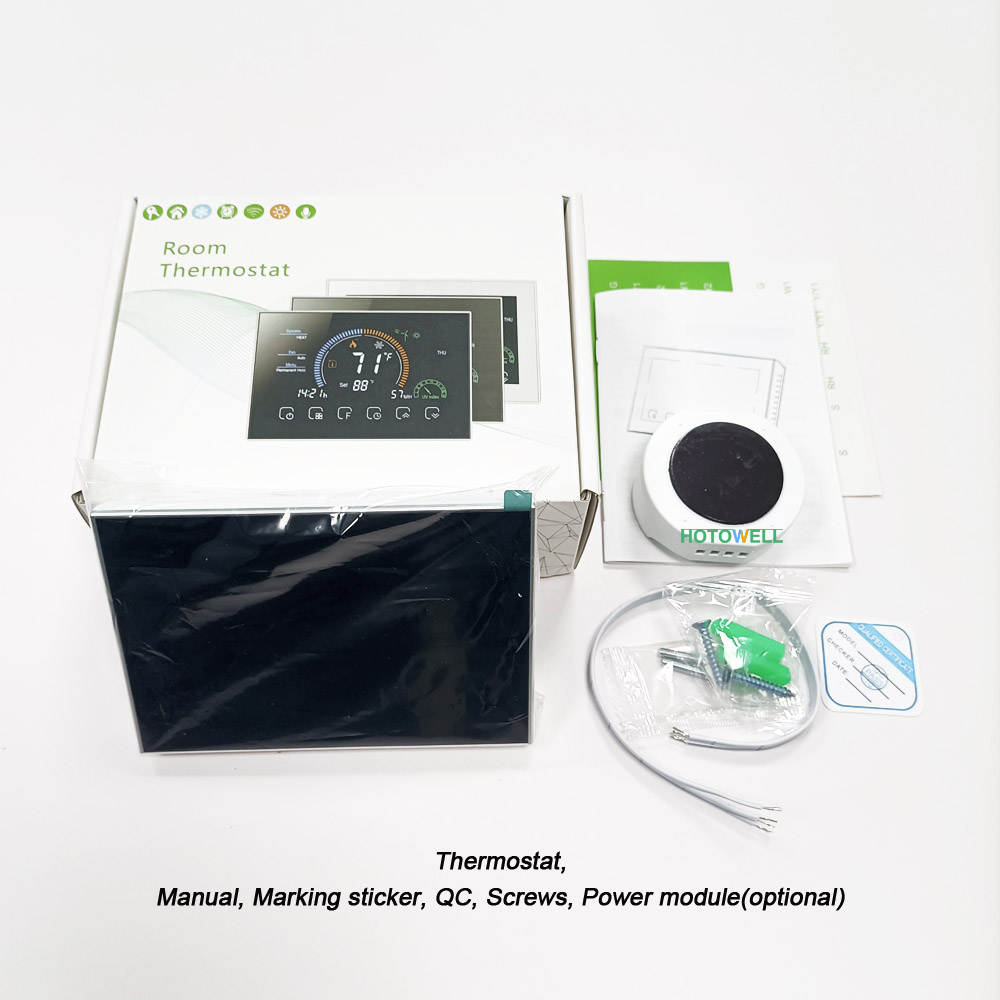

Packing & Delivery
