Tuya Wifi Thermostat Fan Coil Thermostat Temperature Controller with Touch Screen

Tuya Wifi Thermostat Fan Coil Thermostat Temperature Controller with Touch Screen

Product ID : HTW-FT03

Product Tags : Fan coil thermostat smart thermostat

Product Attributes :

HTW-FT03 series Smart Wifi fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description

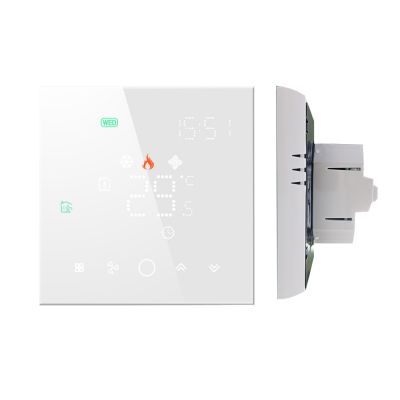

Tuya Wifi Thermostat Fan Coil Thermostat Temperature Controller with Touch Screen

>> General

HTW-FT03 series Smart Wifi fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

>> Feature

1/ 47 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian, Turkey, Hebrew, German, Italian, Japanese, French, Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean)
2/ Snap-In Easy Installation
3/ Fit for EU & Standard Junction Electric Box
4/ Easily Work with Amazon Alexa, Google Assitant, and IFTTT.
5/ Group Control in 1 App
6/ Fashion Sense of Science and Technology

>> Ordering Guide

HTW-FT03--**	-2	2 pipe(tube) system	-W	Window Card input
Smart Wifi Fan Coil Thermostat	-4	4 pipe(tube) system	-T	Clock
	-M	Modulating output	-P	Programmable
	-N	Modbus RTU communication	-E	External Temperature Sensor
	-K	Key Card occupancy input	-24v	Power Supply with 24Vac
e.g. HTW-WF01-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable

>> Typical Wiring

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
