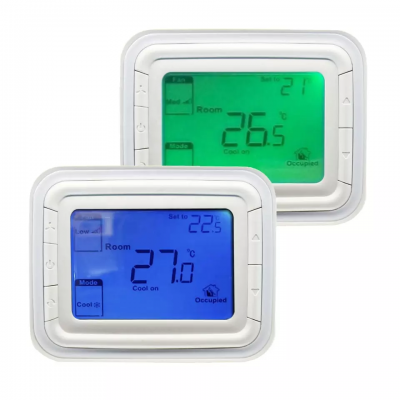

24VAC Honeywell T6865 LCD Large Screen Heat/Cool/Vent Mode Fcu Digital Thermostat
T6865 digital thermostats are designed for application of 3-speed fan and modulating valves in fan coil system. This model include Blue or Green color choice with Horizontal shape. With power 24vac 50/60Hz for modulating valve.Our this model with the same functions with Honeywell T6865, include choice of Remote sensor or Remote set-back.
24Vac Honeywell T6865 LCD Large Screen Heat/Cool/Vent Mode FCU Digital Thermostat
>> General
T6865 digital thermostats are designed for application of 3-speed fan and modulating valves in fan coil system. This model include Blue or Green color choice with Horizontal shape. With power 24vac 50/60Hz for modulating valve.Our this model with the same functions with Honeywell T6865, include choice of Remote sensor or Remote set-back.
>> Features
• 2-pipe cool only/heat only/manual changeover and
• 4-pipe manual or automatic changeover
• Ventilation mode
• Manual or automatic 3-speed fan control
• Water valve control
• Fan speed can be selected to automatic or manual
• 3-speed control mode.
• In ventilation mode, fan only support manual speed control.
>>Technical Data
| Power supply | 24 (+/-10%) VAC |
| Frequency | 50Hz |
| Modulating output | DC 0......10V, Support VC7900 series actuators |
| Fan load rating | 230(+/-10%)VAC, 4(2)A |
| Relay life | 100,000 times |
| Wiring | Max 16AWG |
| Sensing element | 10K (@25ºC) NTC |
| Accuracy | +/-1ºC at 21ºC |
| Setpoint range | 10~32ºC |
| Display range | 0~37ºC |
| Protection Class | IP20 Operation temperature |
| HTW-51-1000 | Horizontal/Vertical | White Frame Backlight | Time on/off | 2-pipe/4-pipe | Power supply | Energy Saving | Ventilation | Manual/Automatic Fan | Remote Setback |
| T6865H2WB | Horizontal | Blue | Y | 2 | 24 | Y | Y | Y | Y |
| T6865H2WG | Horizontal | Green | Y | 2 | 24 | Y | Y | Y | Y |
